10800 1/4 Hose Barb Valved In-Line Coupling Insert (PMCD2204 NSF)

#NSSP004224

Product Description

10800 1/4 Hose Barb Valved In-Line Coupling Insert (PMCD2204 NSF)

Features – Benefits

Hose barb shroud - Extra protection for the 1/16" hose barb

Integral terminations - Fewer leak points, shorter assemblies, faster installations

Compatible - Mates with PMC12 and MC Series couplings

Clicks when connected - Assurance of a reliable connection

Main Specifications:

Material: Acetal

Material Finish: Natural

Color: White
Pressure Range: Vacuum to 120 psi, 8.3 bar

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Options: FDA BUNA-N

Valve Spring: 316 Stainless Steel

Valve Options: Valved

Body Type: Insert

Bag Qty: 25

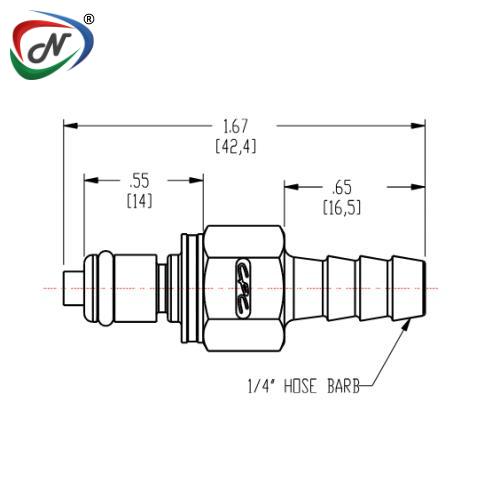

COUPLING INSERT – Acetal

TERMINATION	IN-LINE HOSE BARB (NON-VALVED SHOWN)
TUBING SIZE	1/4" ID
METRIC EQ	6.4mm ID
STRAIGHT THRU	PMC2204
SHUTOFF	PMCD2204
A (Height/Diameter)	0.5 (12.7)
B (Total Length)	1.22/1.70 (31.0/43.2)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
