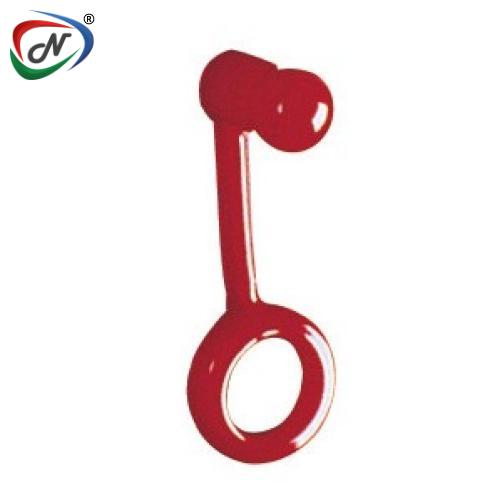

MPC30L PVC Tethered Coupling Body Plug, Molded Red
#NSSP007177
Product Description
MPC30L PVC Tethered Coupling Body Plug, Molded Red
Main Features:
- A thumb latch that is ergonomically designed.
- Materials classified as Class VI by the USP.
- sterilizable by autoclave, Etc, e-beam, and gamma radiation.
- The hose barb is parting line-free.
- BSE/TSE free materials
Main Benefits:
- Even when wearing gloves, this device is easy to operate.
- Meet the biocompatibility requirements.
- Designed for single-use applications that are robust and economical.
- Eliminates potential leak path.
- Meet ADCF requirements.
Main Specifications:
- Material:
PVC
- Material
Finish: Molded Red
- Pressure
Range: Up to 60 psi, 4.1 bar
- Color:
Red
- Mounting
Option: Free Floating
- Valve
Option: Non-Valved
- Body
Type: Caps & Plugs
- Bag
Qty: 250
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007177 |
| Manufacturer Code | MPC30L |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
