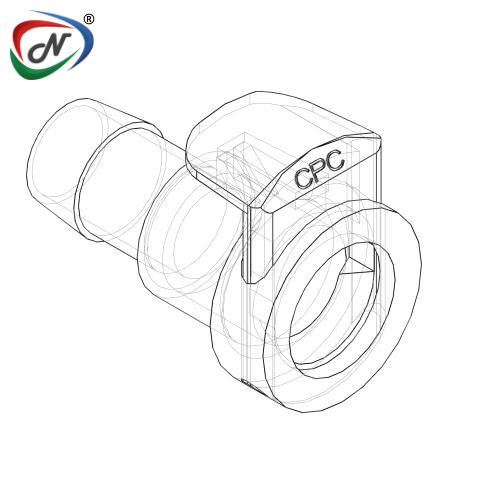

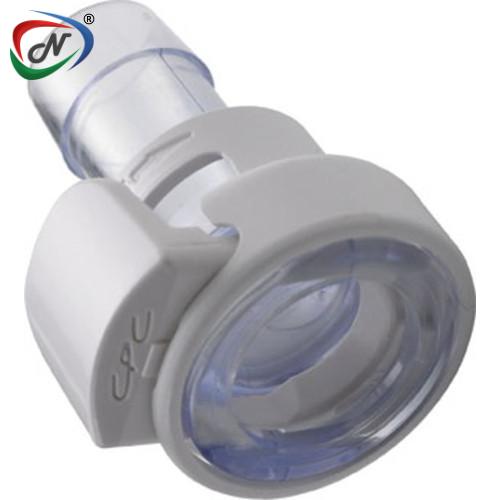

MPC17006T03 3/8 Hose Barb Non-Valved In-Line Coupling Body
#NSSP007390
Product Description
MPC17006T03
3/8 Hose Barb Non-Valved In-Line Coupling Body
Main Features:
- A
thumb latch that is ergonomically designed.
- Materials
classified as Class VI by the USP.
- sterilizable
by autoclave, Etc, e-beam, and gamma radiation.
- The
hose barb is parting line-free.
- BSE/TSE
free materials
Main Benefits:
- Even
when wearing gloves, this device is easy to operate.
- Meet
the biocompatibility requirements.
- Designed
for single-use applications that are robust and economical.
- Eliminates
potential leak path.
- Meet
ADCF requirements.
Main Specifications:
· Material: Polycarbonate,
USP Class VI, ADCF
· Material Finish: Natural
· Color: Purple
Tint
· Mounting Option: Free
Floating
· Sterilization: Gamma,
autoclave
· Temperature Range: -40°F
- 250°F (-40°C - 121°C)
· Valve Option: Non-Valved
· Body Type: Body
· Bag Qty: 250
COUPLING BODY - Polycarbonate
TERMINATION | POLYCARBONATE IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 3/8" ID |
METRIC EQ | 9.5mm ID |
FLOW | 0.29" |
STRAIGHT THRU | MPC17006T03 |
A (Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.1 (27.9) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007390 |
| Manufacturer Code | MPC17006T03 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
