MPC17004T03 1/4 Hose Barb Non-Valved In-Line Coupling Body
#NSSP003246
Product Description
MPC17004T03
1/4 Hose Barb Non-Valved In-Line Coupling Body
Key Features:
- Convenient thumb latch design for easy handling.
- Manufactured using USP Class VI materials.
- Can be sterilized using autoclave, Et0, e-beam, or gamma methods.
- Hose barb without any visible parting lines.
- Made from BSE/TSE free materials.
Key Advantages:
- Simple to operate, even when wearing gloves.
- Complies with biocompatibility standards.
- Sturdy and cost-effective for single-use purposes.
- Eliminates the risk of leaks.
- Meets ADCF requirements.
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Natural
- Color: Purple Tint
- Mounting Option: Free Floating
- Sterilization: Gamma, autoclave
- Temperature Range: -40°F - 250°F (-40°C - 121°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 250
COUPLING BODIES - Polycarbonate, USP Class VI, ADCF
TERMINATION | POLYCARBONATE IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4mm ID |
FLOW | 0.21" |
STRAIGHT THRU | MPC17004T03 |
A (Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.1 (27.9) |
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

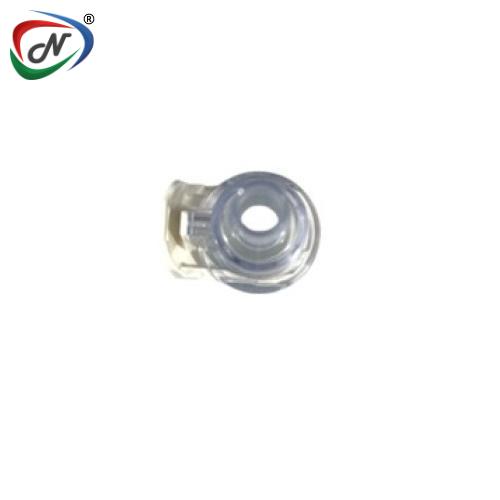

Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003246 |
| Manufacturer Code | MPC17004T03 |
| HSN Code | 3917400090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.002kg |
| Type | Quick Fittings |
