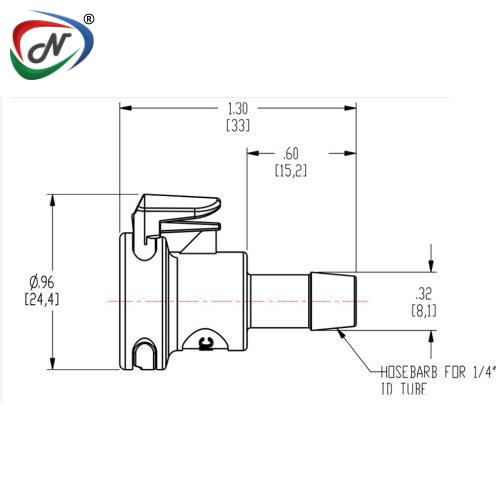

MPC17004T39 1/4 HOSE BARB NON-VALVED COUPLING BODY
#NSSP008261
Product Description
MPC17004T39 1/4 HOSE BARB NON-VALVED IN-LINE CLASS VI POLYSULFONE
COUPLING BODY
MPC Connectors – Reliable Fluid Handling Solutions
MPC connectors are versatile, open-format connectors
designed for critical fluid-handling applications. They are ideal for smaller
bag systems used with aliquoted media and other bagged products.
Available in a range of male and female configurations,
including pressure-sealing caps and plugs, they fit 1/8", 1/4", and
3/8" tubing. Optional locking sleeves help prevent accidental
disconnections, while the rotatable coupling design reduces tube kinking for
smooth fluid flow.
Main Features & Benefits:
|
Features |
Benefits |
||
|
Ergonomic thumb latch |
Easy to operate – even
with gloved hands |
||
|
USP Class VI materials |
Meet biocompatibility
requirements |
||
|
Sterilizable by
autoclave, Et0, e-beam or gamma |
Robust and economical
for single-use applications |
||
|
Parting line-free hose barb |
Eliminates potential leak path |
||
|
BSE/TSE free materials |
Meet ADCF requirements |
||
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: 60 psi, 4.1 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range: -40°F - 300°F (-40°C - 149°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body Type: Bodies
- Package Quantity: 250
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008261 |
| Manufacturer Code | MPC17004T39 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Fittings |
