MPCK17006T03 3/8 HB NV Class VI Polycarbonate Coupling Insert with Buna-N Seal
#NSSP003220
Product Description

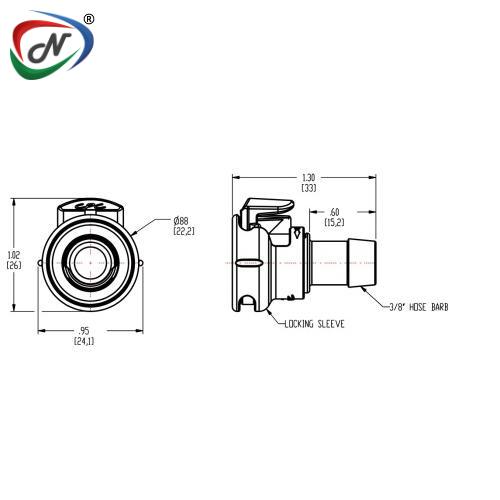

MPCK17006T03 3/8 HB NV Class VI Polycarbonate Coupling Insert with Buna-N Seal
Main Features:
- A thumb latch that is ergonomically designed.
- Materials classified as Class VI by the USP.
- sterilizable by autoclave, Etc, e-beam, and gamma radiation.
- The hose barb is parting line-free.
- BSE/TSE free materials
Main Benefits:
- Even when wearing gloves, this device is easy to operate.
- Meet the biocompatibility requirements.
- Designed for single-use applications that are robust and economical.
- Eliminates potential leak path.
- Meet ADCF requirements.
Main specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Natural
- Color: Purple Tint
- Mounting Option: Thread
- Pressure range: Up to 60 psi, 4.1 bar
- Sterilization Method: Gamma
- Temperature Range: 32°F - 150°F (0°C - 66°C)
- Seal Options: Buna-N USP Class V
- Valve Spring: 316 Stainless Steel
- Valve Options: Not Valved
- Body Type: Inserts
- Bag Qty: 25
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003220 |
| Manufacturer Code | MPCK17006T03 3/8 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
