MPC22004TM 1/4 HB NV Class VI ABS Coupling Insert with Class VI Silicone O-Ring
#NSSP007170
Product Description
MPC22004TM 1/4 HB NV Class VI ABS Coupling Insert with Class VI Silicone O-Ring
Main Features:
- A thumb latch that is ergonomically designed.
- Materials classified as Class VI by the USP.
- sterilizable by autoclave, Etc, e-beam, and gamma radiation.
- The hose barb is parting line-free.
- BSE/TSE free materials
Main Benefits:
- Even when wearing gloves, this device is easy to operate.
- Meet the biocompatibility requirements.
- Designed for single-use applications that are robust and economical.
- Eliminates potential leak path.
- Meet ADCF requirements.
Main Specifications:
- Material:
ABS
- Material
Finish: Molded white
- Pressure
Range: Up to 60 psi, 4.1 bar
- Color:
White
- Mounting
Option: Free Floating
- Sterilization
Method: Gamma
- Temperature
Range: -40°F - 160°F (-40°C - 71°C)
- Seal
Options: Silicone, platinum-cured
- Valve
Option: Non-Valved
- Body
Type: Inserts
- Bag Qty: 250
COUPLING INSERT - ABS
TERMINATION | ABS IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
FLOW | 0.21" |
STRAIGHT THRU | MPC22004TM |
O-RING | Silicone Seal USP Class VI |
A (Height/Diameter) | 0.6 (15.2) |
B (Total Length) | 1.3 (33.0) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

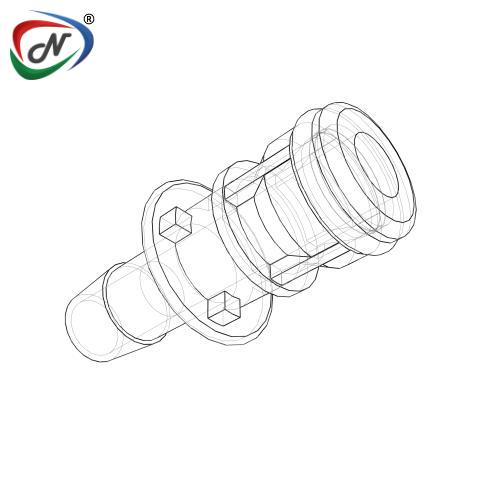

Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP007170 |
| Manufacturer Code | MPC22004TM |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
