MPC17002T03 1/8 Hose Barb Non-Valved In-Line Coupling Body
#NCPCMPC17002T03
Product Description
MPC17002T03
1/8 Hose Barb Non-Valved In-Line Coupling Body
Main Features:
A thumb latch that is ergonomically designed .Materials classified as Class VI by the USP .Sterilizable by autoclave, Etc, e-beam, and gamma radiation .The hose barb is parting line-free .- BSE/TSE free materials
Main Benefits:
Even when wearing gloves, this device is easy to operate .Meet the biocompatibility requirements.Designed for single-use applications that are robust and economical .- Eliminates potential leak
path.
- Meet ADCF requirements.
Main Specifications:
· Material: Polycarbonate, USP Class VI, ADCF
· Material Finish: Natural
· Color: Purple Tint
· Mounting Option: Free Floating
· Sterilization: Gamma, autoclave
· Temperature Range: -40°F - 250°F (-40°C - 121°C)
· Valve Option: Non-Valved
· Body Type: Body
· Bag Qty: 250
COUPLING BODY - Polycarbonate
TERMINATION | POLYCARBONATE IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
STRAIGHT THRU | MPC17002T03 |
FLOW | 0.09" |

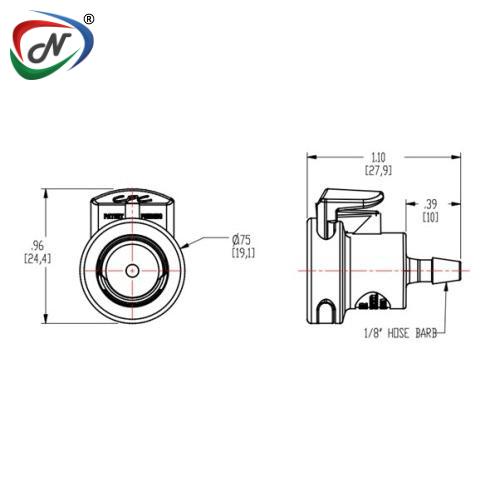

A (Height/Diameter) | 0.96 (24.4) |
B (Total Length) | 1.1 (27.9) |
*All measurements are in inches (millimetres) unless otherwise noted.
Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NCPCMPC17002T03 |
| Manufacturer Code | MPC17002T03 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
