MPC22002T39M 1/8 Hose Barb Non-Valved In-Line Coupling Insert
#NSSP008054
Product Description
MPC22002T39M
Main Features:
A thumb latch that is ergonomically designed .Materials classified as Class VI by the USP .sterilizable by autoclave, Etc, e-beam, and gamma radiation .The hose barb is parting line-free .- BSE/TSE free materials
Main Benefits:
Even when wearing gloves, this device is easy to operate .Meet the biocompatibility requirements.Designed for single-use applications that are robust and economical .- Eliminates potential leak
path.
- Meet ADCF requirements.
Main Specifications:
· Material: Polysulfone, USP Class VI, ADCF
· Material Finish: Natural
· Pressure Range: Up to 60 psi, 4.1 bar.
· Color: Amber tint
· Mounting Option: Free Floating
· Sterilization: Gamma, autoclave
· Temperature Range: -40°F - 300°F (-40°C - 149°C)
· Seal Options: Silicone, platinum cured, USP Class VI, ADCF
· Valve Option: Non-Valved
· Body Type: Insert
· Bag Qty: 250
COUPLING INSERT - Polysulfone
TERMINATION | POLYSULFONE IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
FLOW | 0.09" |
STRAIGHT THRU | MPC22002T39M |
O-RING | Silicone Seal USP Class VI |
A (Height/Diameter) | 0.6 (15.2) |
B (Total Length) | 1.1 (27.9) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

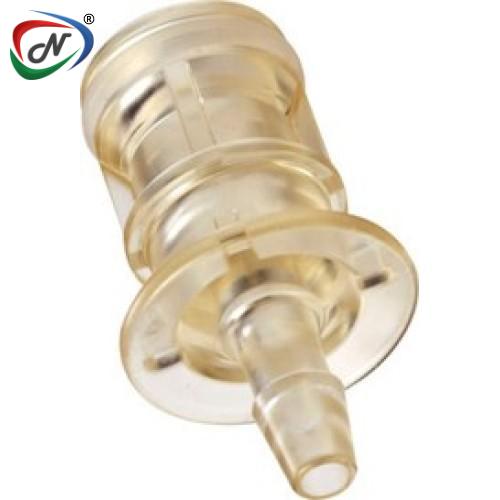

Note: Image is just for ref.
Click to download : CPC-MPC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008054 |
| Manufacturer Code | MPC22002T39M |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
