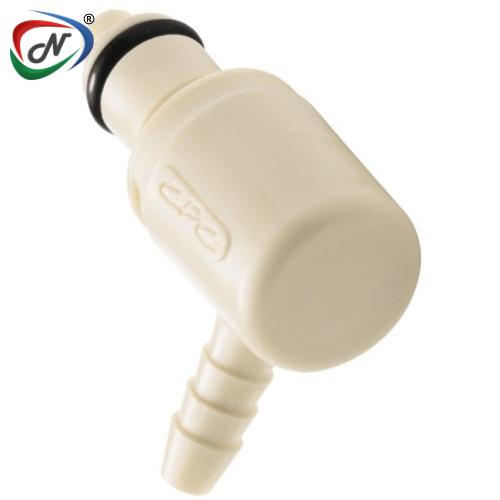

PMCD230212 1/8 Hose Barb Valved Elbow Coupling Insert
#NSSP003989
Product Description
PMCD230212
1/8 Hose Barb Valved Elbow Coupling
Insert
Main Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Almond
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Almond
- Mounting Option: Free Floating
- Sterilization Method: Gamma: Up to 50 kGy irradiation
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERT – Polypropylene
TERMINATION | ELBOW HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ | 3.2mm ID |
STRAIGHT THRU | PMC230212 |
SHUTOFF | PMCD230212 |
A (Height/Diameter) | 0.5 (12.7) |
B (Total Length) | 1.09/1.21 (27.7/30.7) |
D (Elbow Radial Length) | 0.69 (17.5) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003989 |
| Manufacturer Code | PMCD230212 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
