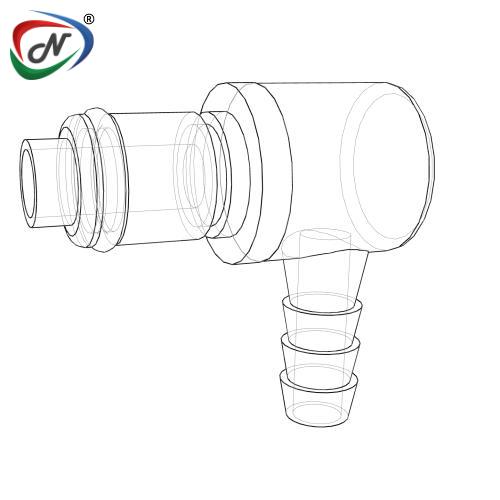

PLCD2300412 1/4 Hose Barb Valved Elbow Coupling Insert
#NSSP003994
Product Description
PLCD2300412
1/4 Hose Barb Valved Elbow Coupling Insert
Main
Features:
- Colder thumb latch
- Integral terminations
- Clicks when connected
- Compatible
Main
Benefits:
- One-hand connection and disconnection
- Fewer leak points, shorter assemblies,
faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series couplings
Main
Specifications:
- Material: Polypropylene
- Material
Finish: Almond
- Pressure
Range: Vacuum to 120
psi, 8.3 bar
- Color: Almond
- Mounting
Option: Free Floating
- Sterilization
Method: Gamma: Up to
50 kGy irradiation
- Temperature
Range: 32°F - 160°F
(0°C - 71°C)
- Seal
Options: EPDM
- Valve
Spring: 316 Stainless
Steel
- Valve
Options: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERT - ACETAL
TERMINATION | ELBOW HOSE BARB |
TUBING/THREAD SIZE | (RS-232 Interface) 3/8" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | PLC2300412 |
SHUTOFF | PLCD2300412 |
A (Height/Diameter) | 0.63 (16.0) |
B (Total Length) | 1.22/1.36 (31.0/34.5) |
D (Elbow Radial Length) | 0.96 (24.4) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003994 |
| Manufacturer Code | PLCD2300412 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
