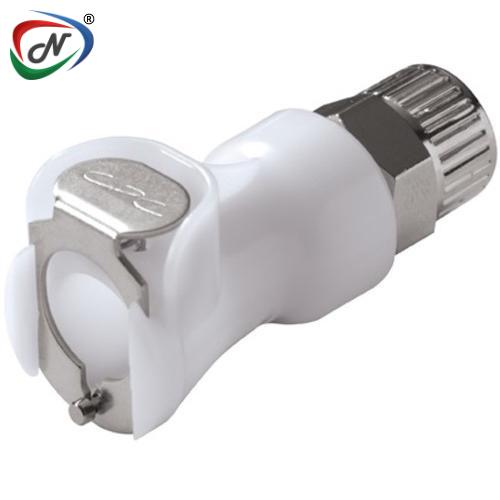

PLCD13006 3/8 PTF Valved In-Line Coupling Body
#NSSP003564
Product Description
PLCD13006 3/8 PTF Valved In-Line Coupling Body
MAIN FEATURES:
- Colder Thumb Latch
- Integral Termination
- Clicks when connected
- Compatible
MAIN BENEFITS:
- One-hand connection & disconnection
- Fewer leak points, shorter assemblies, faster installations
- Assurance of a reliable connection
- Mates with LC and PLC12 Series Coulpings
MAIN SPECIFICATIONS:
· Material: Acetal
· Material Finish: Natural
· Pressure Range: Vacuum to 120 psi, 8.3 bar
· Color: White
· Mounting Option: Free Floating
· Temperature Range: -40°F - 180°F (-40°C - 82°C)
· Seal Options: BUNA-N
· Valve Spring: 316 Stainless Steel
· Valve Option: Valved
· Body Type: Body
· Bag Qty: 25
COUPLING BODY - ACETAL
TERMINATION | IN-LINE FERRULELESS POLYTUBE FITTING, PTF† |
TUBING/THREAD SIZE | 3/8" OD, 0.25" ID |
METRIC EQ | 9.5mm OD, 6.4mm ID |
STRAIGHT THRU | PLC13006 |
SHUTOFF | PLCD13006 |
A (Height/Diameter) | 0.94 (23.9) |
B (Total Length) | 1.95 (49.5) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.
†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Click to download : CPC-PLC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003564 |
| Manufacturer Code | PLCD13006 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
