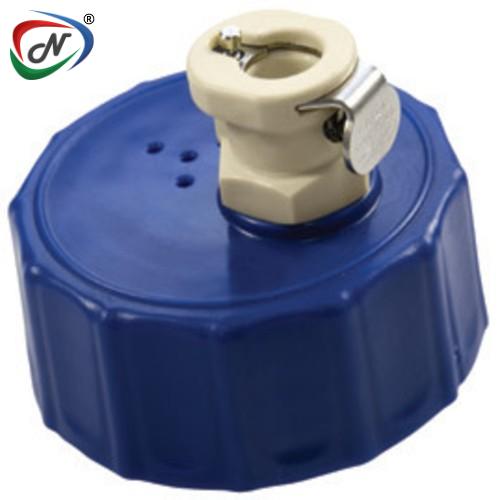

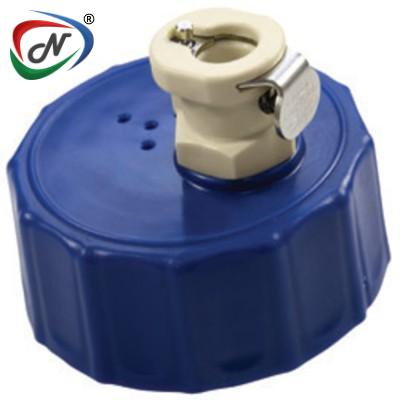

BQ45GL1001 45mm CAP x PMC12 Valved In-Line Body
#NSSP004695
Product Description
BQ45GL1001
45mm CAP x PMC12 Valved In-Line Body
Main Features:
- Factory installed quick disconnects.
- Hydrophobic packaging vent
- Polyethylene foam gasket
- Integral hose barb
Main Benefits:
- Ensures cap properly seals to bottle (even without sealing rings)
- Encourage proper fluid handling protocol allowing easy disconnections to replace or refill consumables in the correct location.
- Allows dispensing from container while preventing accidental spillage.
- Allows for mounting of ¼” ID DIP tube
Main Specifications:
- Material: HDPE
- Material Finish: Molded Blue
- Color: Blue
- Mounting Option: Free Floating
- Temperature Range: 32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 5
BOTTLE CAP - Polyethylene
DESCRIPTION | GL45 HDPE CAP WITH POLYETHYLENE FOAM SEALING GASKET, HYDROPHOBIC VENT AND INTEGRAL VALVED PMC12 BODY QUICK DISCONNECT INTERFACE |
PART NO. | BQ45GL1001 |
DIP TUBE SIZE | 1/4” ID |
A(Coupling) | 0.68 (17.3) |
B (Cap Height) | 0.83 (21.1) |
D(Cap Diameter) | 2.04 (51.8) |
*All measurements are in inches (millimetres) unless otherwise noted.
Click to download : Dimensions/Design Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004695 |
| Manufacturer Code | BQ45GL1001 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
