MPU32039 USPS Class VI Polysulfone Coupling Insert Cap
#NSSP008056
Product Description

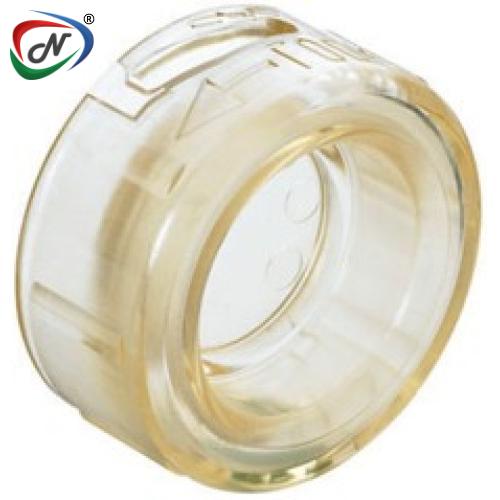

MPU32039 USPS Class VI Polysulfone Coupling Insert Cap
Medical/ Biopharma Fitting
The MPU's twist-to-connect design features an easy-to-use locking mechanism that guards against accidental disconnects and provides a reliable, secure connection. A 3/4" and 1" hose barb provides smooth, rapid media transfer.
Main Features:
- 3/4" & 1" hose barb
- Locking feature
- Sharp barb end
- Shrouded, leak-free seal & smooth, internal flow path
Main Benefits:
- Facilitates rapid fill and empty of bioprocessing bags
- Guards against accidental disconnects
- Minimizes fluid turbulence and dead space
- Protect valuable fluids and eliminate potential to contaminate fluid path
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method:
- Temperature range: -40°F - 300°F (-40°C - 149°C)
- Seal Options: Silicone, platinum-cured
- Body type: Caps & Plugs
- Bag Qty: 10
Click to download : COLDER_MPU32039Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008056 |
| Manufacturer Code | MPU32039 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
