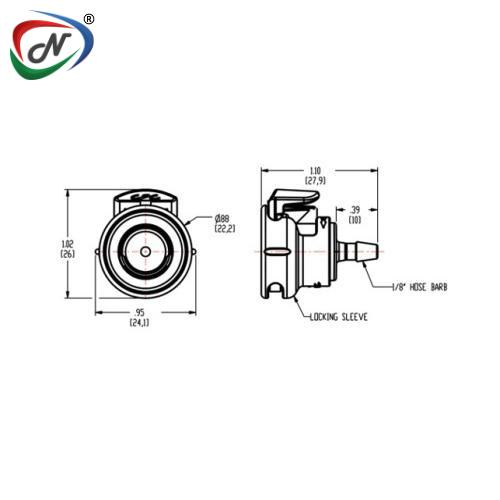

MPCK17002T39 1/8 Hose Barb Non-Valved In-Line Class VI Polysulfone Coupling Body With Lock
#NSSP008085
Product Description
MPCK17002T39 1/8 Hose Barb Non-Valved In-Line Class VI Polysulfone Coupling Body With Lock
Medical/ Biopharma Fitting
MPC connectors are multipurpose, open-format connectors for use in a wide variety of critical fluid-handling applications. This particular type of connector is perfect for smaller bag systems for aliquoted media or other products stored in bags.
MPC connectors add ease of use and security to your most critical fluid handling applications. Choose from a full line of male and female MPC connectors and configurations, including pressure sealing caps and plugs, in sizes to fit 1/8", 1/4" and 3/8" tubing. MPC couplings offer optional locking sleeves to further guard against accidental disconnects. In addition, coupling halves can be rotated when connected to reduce tube kinks.
Main Features:
- Ergonomic thumb latch
- USP Class VI materials
- Sterilizable by autoclave, Et0, e-beam or gamma
- Parting line-free hose barb
- BSE/TSE free materials
Main Benefits:
- Easy to operate – even with gloved hands
- Meet biocompatibility requirements
- Robust and economical for single-use applications
- Eliminates potential leak path
- Meet ADCF requirements
Main Specifications:
- Material: Polysulfone, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Up to 60 psi, 4.1 bar
- Color: Amber tint
- Mounting Option: Free Floating
- Sterilization Method:
- Temperature range: -40°F - 300°F (-40°C - 149°C)
- Seal Options: Silicone, platinum-cured
- Valve Options: Non-Valved
- Body type: Bodies
- Bag Qty: 250
Click to download : COLDER_MPCK17002T39Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP008085 |
| Manufacturer Code | MPCK17002T39 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
