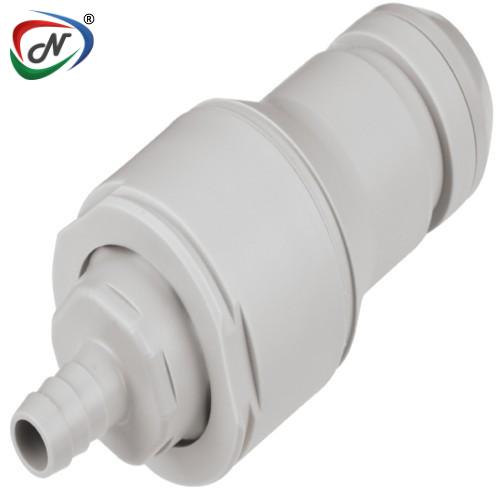

NSHD22010 5/8 Hose Barb Valved In-Line Coupling Insert
#NSSP006994
Product Description
NSHD22010
5/8 Hose Barb Valved In-Line Coupling Insert
Main Features:
- Non-Spill Design
- Pressure-balanced design
- Springless flow path design
- Optional colour coding
Main Benefits:
- Ultimate protection from chemicals & fumes
- Failsafe disconnect, even under pressure
- Easy to reconnect at high pressure
- Eliminates source of metallic contaminants
- Helps prevent accidental misconnects
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: Gray with dark gray accent
- Mounting Option: Free Floating
- Temperature Range: 32°F - 120°F (0°C - 49°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Valved
- Body Type: Insert
- Spillage: <0.1 cc (ml) per disconnects, 0.03cc per connect
- Weight: .123 Ounce
- Bag Qty: 5
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 5/8" ID |
METRIC EQ. | 15.9 mm OD |
SHUTOFF | NSHD22010 |
A(Height/Diameter) | 1.64 (41.7) |
B (Total Length) | 4.05 (102.9) |
*All measurements are in inches (millimetres) unless otherwise noted.

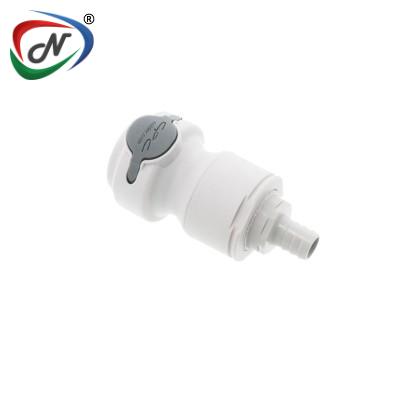

Note: Image is just for ref.
Click to download : CPC-NSH-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006994 |
| Manufacturer Code | NSHD22010 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
