Gear Pump

#NSSP001916

Product Description

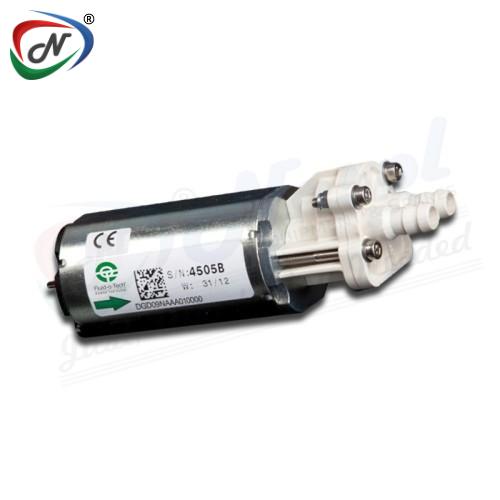

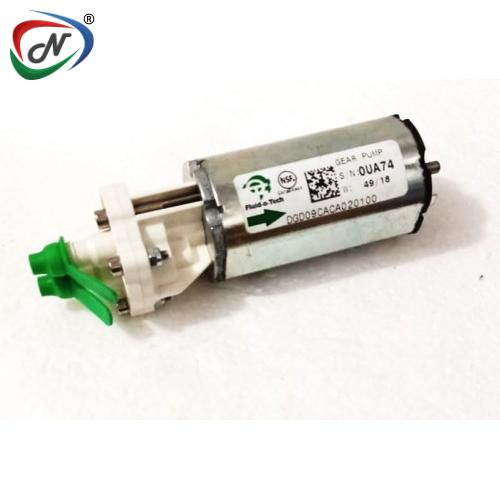

DGD09NA020000 DGD09 GEAR PUMP IN LCP WITH STRAIGHT TEETH DIRECT DRIVE DGD09NA020000

Gear Pump in LCP with straight barbed teeth direct drive (DGD09) Coffee Machine Fluid-o-Tech DGD09 Gear Pump is the gear pump motor designed to facilitate the movement of the viscous fluid with ease. DGD09NA020000 gear motor pump is made with direct drive gear pump motor which is based on the magnetic drive MG200 series. This gear pump motor-unit is made to handle the clean, thick, and viscous fluid at the maximum temperature of 70 degrees.

Apart from this feature, several other feature of the DGD09NA020000 gear pump motor unit are:

(1) Ease flow of viscous fluid

(2) Pressure up to 4 bar (58 PSI)

(3) Flow rates up to 160 l/h (42 GPH)

(4) Stainless steel case

(5) Vectra gears

(6) Straight teeth direct drive

(7) Compact design

(8) NSF certified pumps

Gear pump motor units are mostly designed to be used in hydraulic applications. This pump runs with low pulse.

Gear pump DGD09 is widely used in various industries such as:

Coffee industry
Environment industry
Food service
Paints and inks industry
Scientific industry
Water treatment industry, etc.

This pump is used in the dosing, pressurization, and transfer of the clean and viscous fluids. Natron Equipment and Spares Pvt. Ltd., being the exclusive distributor of the External gear pump motors manufactured by Fluid-o-tech, provides the DGD09 Gear Pump at your convenience.

Click to download : DGD09 GEAR PUMP

Click to download : DGD_gear_pump-motor_unit_datasheet

Click to download : DGD_gear_pump-motor_unit_manual

Click to download : Declaration of Conformity

Click to download : NSF Certification

Coffee Industry

Additional Information

NESPL Code	NSSP001916
Manufacturer Code	DGD09NA020000
HSN Code	84138190
Manufacturer	Fluid-o-Tech
Voltage	24 V DC
Model	DGD Series
Power	3900 rpm
Weight	0.340 kg
Type	Pump
