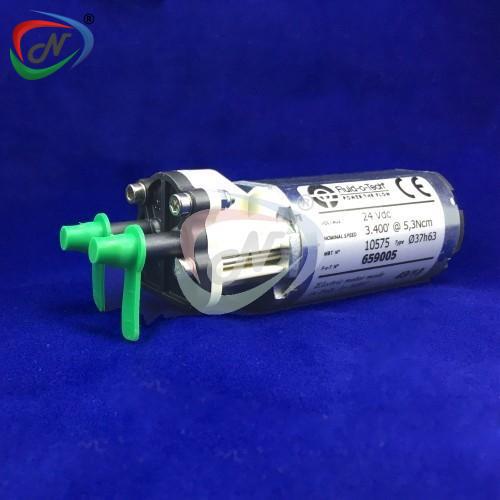

DGD09CACA020100 - GEAR PUMP

#NSSP002400

Product Description

DGD09CACA020100 - GEAR PUMP

The DGD series direct drive gear pumps derive from the well established mag drive MG200 series. Built to handle clean water and relatively viscous fluids at low pressure, the DGD series pump-motor unit has low pulsation and is capable of handling fluids at a maximum temperature of 70 °C (158 F). The extreme compactness of its design makes it the preferred choice where space is limited. Suction/discharge ports are 8 mm barbed end or with a 6 mm quick connector.

Motor version (brush type):

• 1500 rpm, 24 V DC

• 3400 rpm, 24 V DC

• 3900 rpm, 24 V DC

MAIN APPLICATIONS:

  •   WATER PURIFICATION
  •    LASER COOLING
  •   SPRAYING
  •   WATER RECIRCULATION
  •   CONDENSATION REMOVAL
  •   SYRUP DISPENSING
  •   VENDING MACHINES
  •   FOOD PROCESSING
  •   DIGITAL MACRO PRINTING

MAIN FEATURES:

  •  EASE FLOW OF VISCOUS FLUID
  •  PRESSURE UPTO 4 BARS (58PSI)
  •  FLOW RATES UPTO 160 I/h (42 GPH)
  •  RPM : 1500
  • STAINLESS STEEL CASE
  • VECTRA GEARS
  • STRAIGHT TEETH DIRECT DRIVE
  • COMPACT DESIGN
  • NSF CERTIFIED PUMPS
  • NESPL is An Exclusive Distributor of Fluid-o-Tech Pumps and Parts in India.

    NESPL has been associated with Fluid-o-Tech Italy for almost a decade now. We can provide High Quality Pumps & Accessories, FG409 Electromagnetic Drive Gear Pump, TP304670B040000 Peristaltic Pump for Liquor, PA03511 Rotary Vane Pump, DGD09CACA020100 - Gear Pump, FG313 Electromagnetic Gear Pump – Motor, TMCF01S-07S Circulation Pump, PA301 Rotary Vane Pump, MA0204 Pump Brass Housing,  MA074 Rotary Vane Pump, PA0711 Fluid-O-Tech Rotary Vane Pump, Solenoid Pumps, Magnet Drive Gear Pump, Duplex Solenoid Pump, MG409XD0CT00000 Electromagnetic Pump, & Parts, Anywhere in India at the Best Prices as well.

    Product Features-

    • NSF listed
    • Compact dimensions
    • Flow directly proportional to speed
    • 12V & 24V DC options

    DGD SERIES PUMP-MOTOR UNIT

    TECHNOLOGY

    External gear pumps

    FLOW RATE
    (MIN)

    40 l/h

    FLOW RATE
    (MAX)

    160 l/h

    DIFFERENTIAL
    PRESSURE (MAX)

    4 bar

    STATIC PRESSURE
    (MAX)

    6 bar



Read More

Soft Drink Industry

Coffee Industry

Water Purification

Various Industry Products

Additional Information

NESPL Code NSSP002400
Manufacturer Code DGD09CACA020100
HSN Code 84138190
Manufacturer Fluid-o-Tech
Voltage 24V DC
Weight 0.292 Kg
Type Pump

Related Products

 GEAR PUMP DGD04
GEAR PUMP DGD04 NESPL Code - #NSSP001989

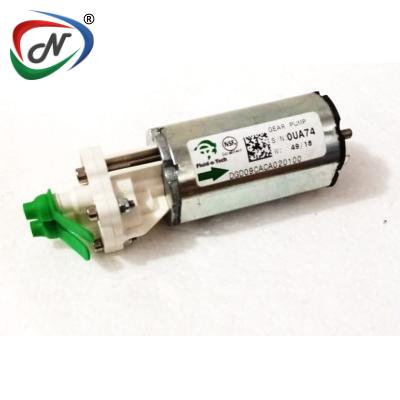

 Gear Pump
Gear Pump NESPL Code - #NSSP001916

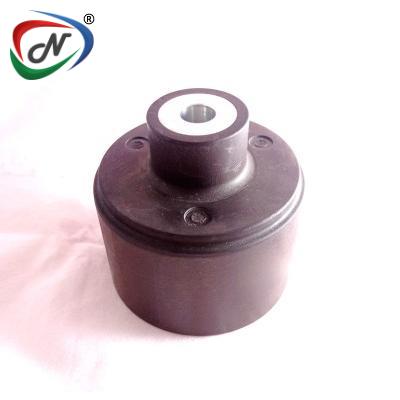

 DRIVING MAGNET FOR GEAR PUMPS
DRIVING MAGNET FOR GEAR PUMPS NESPL Code - #NSSP002433
 MILK PUMP SEAL
MILK PUMP SEAL NESPL Code - #NSSP002388

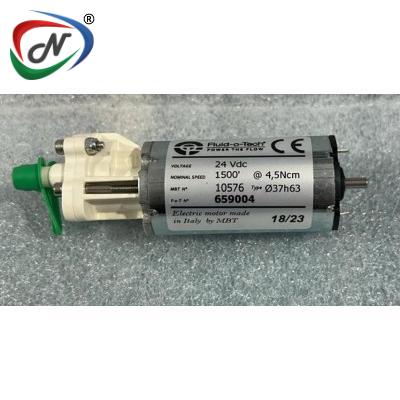

  DGD09NAAA010000-DGD09 - Gear pump with straight Teeth
DGD09NAAA010000-DGD09 - Gear pump with straight Teeth NESPL Code - #NSSP003416

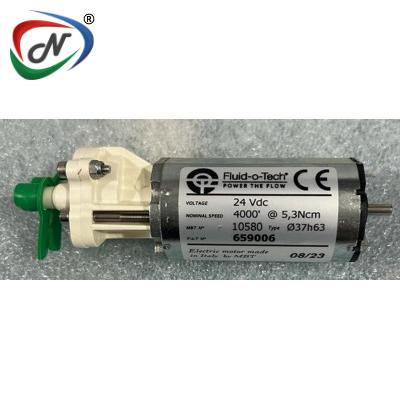

 DGD09NAAA030000 Gear pump with straight teeth
