DGD09NAAA030000 Gear pump with straight teeth

#NSSP003417

Product Description

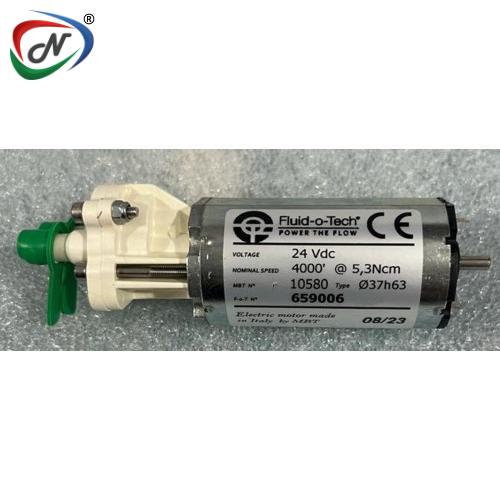

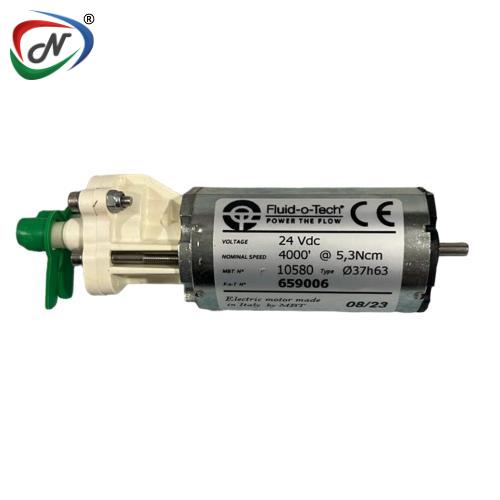

DGD09NAAA030000 Gear Pump with Straight Teeth

direct drive 9 mm gears in LCP,
NBR seals PPS
with fittings for Øi 7 pipe
with MBT motor24Vcc

The DGD series of direct drive gear pump-motor units are designed to manage clean and moderately viscous fluids, operating at a maximum temperature of 70 °C (158 °F) and capable of withstanding pressures up to 4 bar (58 psi) with flow rates reaching 160 l/h (42 GPH). The pump housing can be constructed from either stainless steel or Vectra, while the gears are manufactured from Vectra. Sealing options include NBR, EPDM, or Viton. The suction and discharge ports feature an 8 mm barbed end. The pump drives are offered in 12V or 24V brush DC configurations, with various nominal speeds and power ratings suitable for intermittent duty applications. Its compact design makes it an ideal solution for environments with limited space. Additionally, NSF certified pumps for potable water or fluids intended for human consumption are also available.

Main Features-

NSF listed

Compact dimensions

Flow directly proportional to speed

12V & 24V DC options

Main Specifications:

DGD SERIES PUMP-MOTOR UNIT
TECHNOLOGY	External Gear pumps
FLOW RATE (MIN)	40 l/h
FLOW RATE (MAX)	160 l/h
DIFFERENTIAL PRESSURE (MAX)	4 bar
STATIC PRESSURE (MAX)	6 bar
