NSHD24006BSPT 3/8 BSPT Valved In-Line Coupling Insert

#NCPC177

Product Description

NSHD24006BSPT

3/8 BSPT Valved In-Line Coupling Insert

Main Features:

  • Non-Spill Design
  • Pressure-balanced design
  • Springless flow path design
  • Optional colour coding

Main Benefits:

  • Ultimate protection from chemicals & fumes
  • Failsafe disconnect, even under pressure
  • Easy to reconnect at high pressure
  • Eliminates source of metallic contaminants
  • Helps prevent accidental misconnects

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded Grey
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Gray with dark gray accent
  • Mounting Option: Free Floating
  • Temperature Range: 32°F - 120°F (0°C - 49°C)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Option: Valved
  • Body Type: Insert
  • Spillage: <0.1 cc (ml) per disconnects, 0.03cc per connect
  • Bag Qty: 5

TERMINATION

IN-LINE PIPE THREAD

TUBING/THREAD SIZE

3/8" BSPT

SHUTOFF

NSHD24006BSPT

A(Height/Diameter)

1.64 (41.7)

B (Total Length)

3.84 (97.5)



*All measurements are in inches (millimetres) unless otherwise noted.

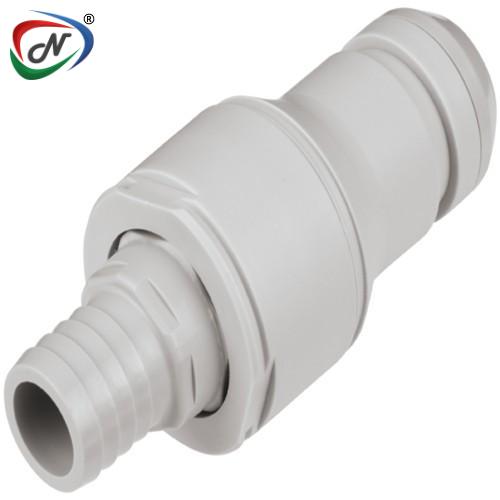

Note: Image is just for ref.
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC177
Manufacturer Code NSHD24006BSPT
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
