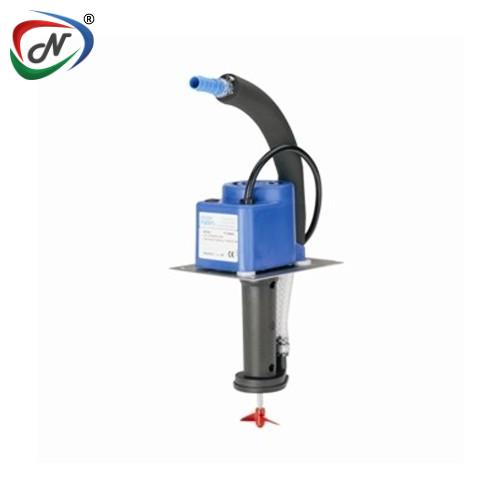

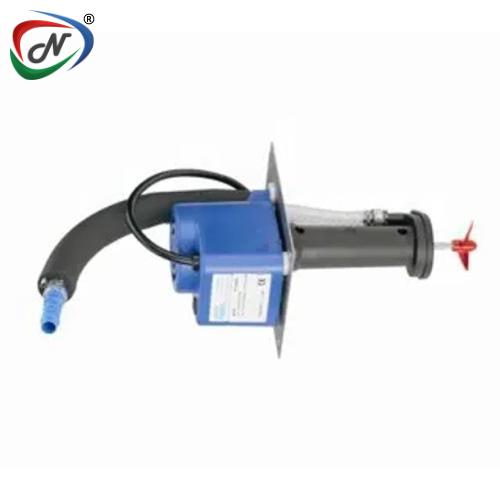

SPC8/2 Series Semi-Submersible Column Pump

#NSSXXXXX

Product Description

SPC8/2 SERIES SEMI-SUBMERSIBLE COLUMN PUMP

FLOW RATE: UP TO 8 LITRES/MIN (2.1 GALLONS/MIN)

Flow rate: up to 8.5 Litres/min (2.25 gallons/min) Open Flow

Maximum 2m (6.5') head.

Model No.: SPC8/2 Series

Minimal repairs and long life.


Accessible with plugs or leads to suit application.

Agitator propeller fitted as standard.

 Applications:

  • Designed for continuous operation in:
  • chillers,
  • coolers,
  • vending
  • general water applications.
  • Ideal for shelf coolers

 Main Specifications:

SPECIFICATIONS

SPC8/2

Materials of Construction

(wetted parts:) SS mounting plate, TPE impellers, ABS column & pump body, SS shaft, Nylon agitator

Port Type

12mm hose stub

Voltage

110 or 230 (VAC)

Frequency

50/60 (Hz)

Max. Liquid Temperature

-20 to 85 (°C) -4 to 185 (°F)

Max. System Pressure

0.2 (bar) 3 (psi)

Dimensions (H x W x D)

6.85 x 6.85 x 8.82 (inches) 174 x 174 x 224 (mm)

Weight

1 (kg) 2.2 (lb)

OPEN FLOW MAXIMUM 2M (6.5') HEAD DESIGNED FOR CONTINUOUS OPERATION IN CHILLERS, COOLERS, VENDING AND GENERAL WATER APPLICATIONS.

IDEAL FOR SHELF COOLERS LOW MAINTENANCE AND LONG LIFE AVAILABLE WITH PLUGS OR LEADS TO SUIT APPLICATION AGITATOR PROPELLER FITTED AS STANDARD.



Read More

Additional Information

NESPL Code NSSXXXXX
Manufacturer Code SPC8/2
HSN Code -
Manufacturer FLOJET / XYLEM PUMPS
Voltage 110 or 230 (VAC)
Model SPC8/2 Series
Weight 1 (kg) 2.2 (lb)
Type Pump
