Magnet drive gear pumps

#NSSP002364

Product Description

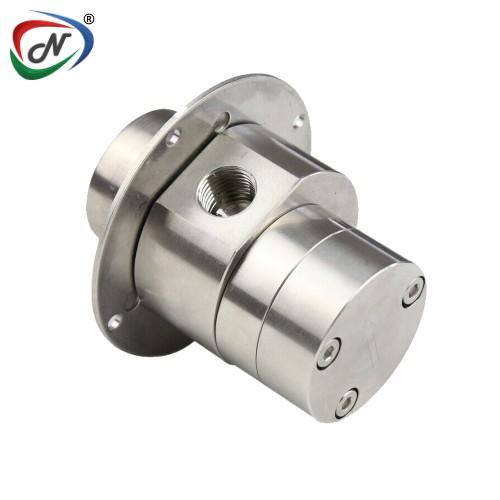

 MAGNET DRIVE GEAR PUMPS

  • The MG series magnet drive gear pumps are compact precision performance pumps for high technology applications.
  • The MG300 series is designed to provide an accurate and uniform delivery regardless of the fluid temperature.
  • The seal-less design with the magnetic transmission of the rotation is guarantee of a leak proof product.
  • Static seals are available in EPDM, NBR, PTFE™, Silicon or Viton to guarantee the highest chemical compatibility with a wide range of fluids.
  • The housing of the gear pump and the internal metal parts are in AISI 316 L stainless steel while gears and bushings are in PEEK™ or PTFE™.
  • Other materials, as well as a range of driving magnets are available.
  • NSF certified gear pumps for potable water or fluids for human consumption are also available.
  • In operation the MG300 series pumps are noiseless, pulsation-free and capable of handling relatively high temperature liquids up to 120 °C (248°F) with a low coefficient of expansion.
  • The pump is capable of a flow range from 20 to 250 l/h (5 to 66 GPH) and pressure to 15 bar (218 psi)
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP002364
Manufacturer Code MG213XK
HSN Code 84136090
Manufacturer Nespl
Model MG213XK
Power 20 bar/290 psi
Weight 0.490 Kg
Type Pump

Related Products

 GEAR PUMP DGD04
GEAR PUMP DGD04 NESPL Code - #NSSP001989

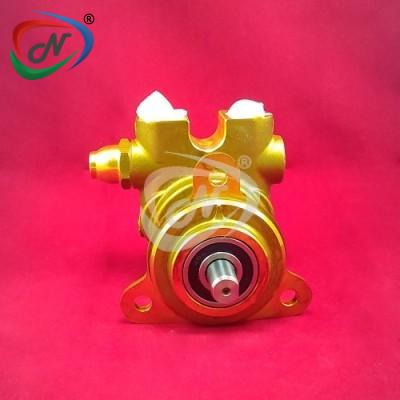

 PA301 Rotary Vane Pump
PA301 Rotary Vane Pump NESPL Code - #NSSP001105

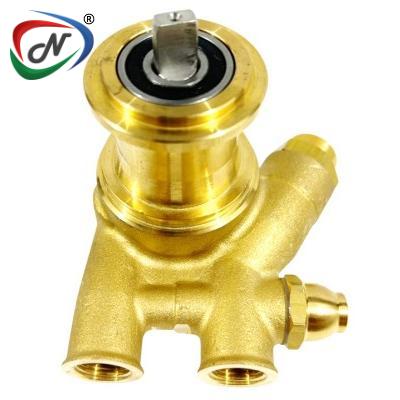

 PA3501X ROTARY VANE PUMP
PA3501X ROTARY VANE PUMP NESPL Code - #NSSP001096

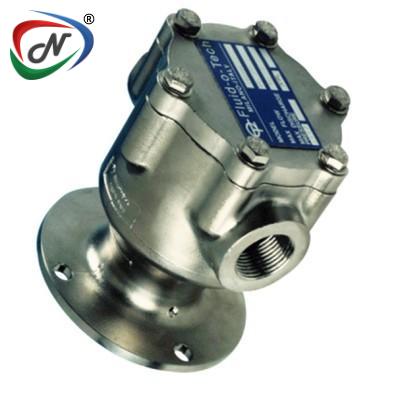

 PO4120 Rotary Vane Pump
