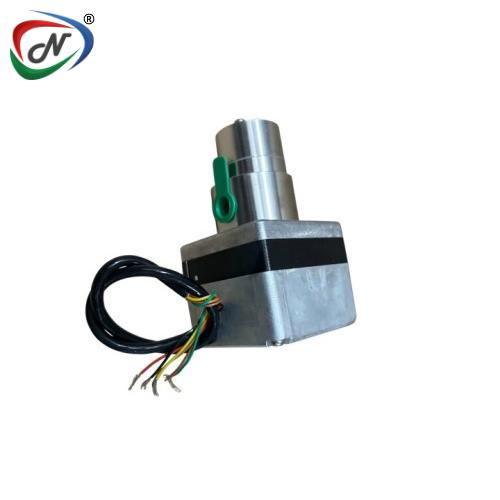

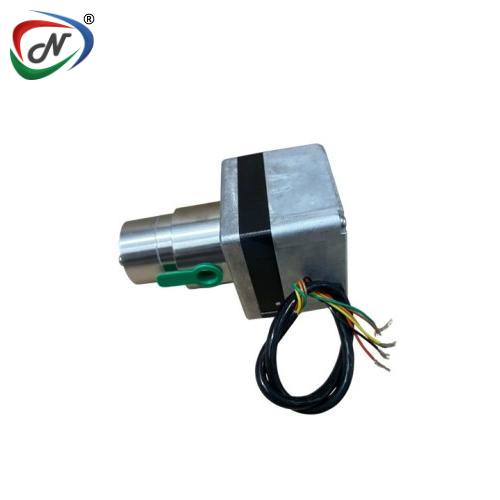

FG404XD0WT10000 GEAR PUMP WITH 4 MM GEARS

Name: FG404XD0WT10000 GEAR PUMP WITH 4 MM GEARS
Rating: 5.0 (89 reviews)

#NSSP007472

Product Description

FG404XD0WT10000 GEAR PUMP WITH 4 MM GEARS

The Fluid-O-Tech FG200-300-400 series, native from the solid knowledge in mag drive gear pumps, is a smart and compact pump-motor unit. The pump housing is in stainless steel AISI 316L, while gears and bushings are in PEEK™ or PTFE™. Static seal in EPDM, NBR, PTEF, silicon or Viton guarantee full chemical compatibility with a wide range of fluids. Other materials, as well as a range of driving magnets are available. HSF certified pumps for potable water or fluids for human consumption are also available.

MAIN APPLICATIONS

MEDICAL EQUIPMENT

HEMODIALYSIS APPARATUS

LASER APPARATUS

LUBRICATION

INK-JET PRINTING SYSTEMS

COOLING SYSTEMS

LABORATORY INSTRUMENTATION

WATER TREATMENT

SAMPLING

FOOD PROCESSING EQUIPMENT

Main Features:

Very compact size

Self priming

Quiet operation

Wide range of materials for chemical compatibility

Pulsation free flow

Integrated 24V BLDC drive with speed control

No moving motor parts

Long service life

NSF listed

A blue circle with black text

AI-generated content may be incorrect.

FG200-300-400 SERIES PUMP-MOTOR UNIT	Technology	Flow Rate (Min)	Flow Rate (Max)	Differential Pressure (Max)	Static Pressure (Max)
FG200-300-400 SERIES PUMP-MOTOR UNIT	External gear pumps	30 l/h	210 l/h	12 bar	20 bar
