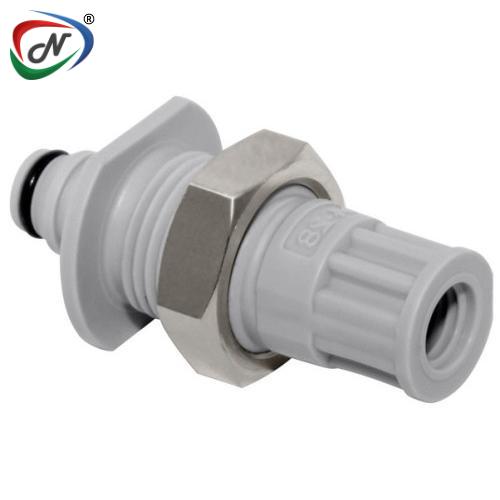

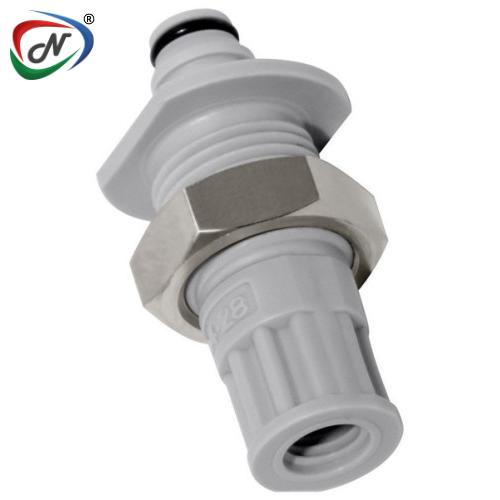

NS1D48042812HC 1/4-28 Flat Bottom Port Valved Panel Mount Coupling Insert Hastelloy-C® Spring

#NSSP007297

Product Description

NS1D48042812HC 1/4-28 Flat Bottom Port Valved Panel Mount Coupling Insert Hastelloy-C® Spring

Main Specifications:

  • Material: Polypropylene
  • Material Finish: Molded Grey
  • Pressure Range: Vacuum to 15 psi, 1.0 bar
  • Color: Gray
  • Mounting Option: Panel Mount
  • Temperature Range: 32 - 120 (0 - 49)
  • Seal Options: EPDM
  • Valve Spring: 316 Stainless Steel
  • Valve Options: Valved
  • Body Type: Inserts
  • Spillage: <0.02 cc per disconnect, 0.01 cc per connect
  • Bag Qty: 25

Main Features:

  • Non-spill design
  • Ultra low air inclusion
  • Intuitive interface
  • Rotating design
  • Chemically resistant materials

Main Benefits:

  • Closed system for drip-free disconnect
  • Minimizes contaminants, eliminates the need to purge air bubbles from the system
  • User friendly ergonomic design enables a secure, reliable connection
  • Allows tubing to move freely or relax without kinking or leaking
  • Reliable strength and performance in a range of applications
Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NSSP007297
Manufacturer Code NS1D48042812HC
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
