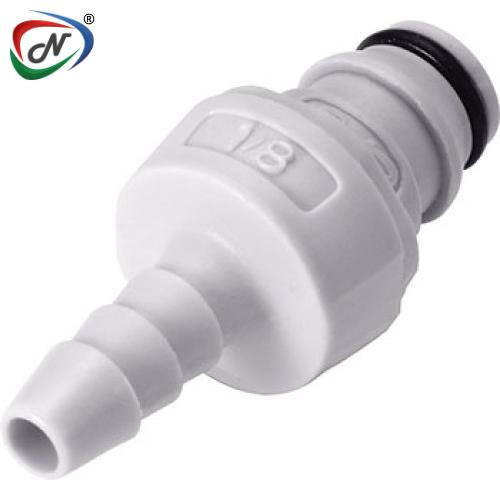

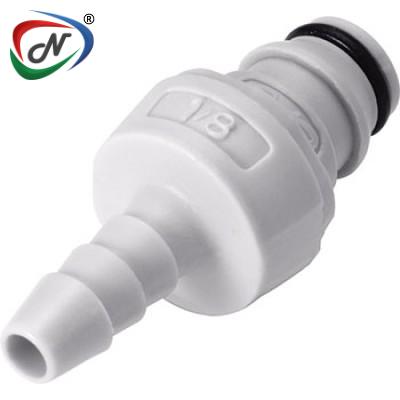

NS1D220212 1/8 Hose Barb Valved In-Line Coupling Insert
#NSSP003126
Product Description
NS1D220212 1/8 Hose Barb Valved In-Line Coupling Insert
Main Specifications:
Material: Polypropylene
Material Finish: Molded Grey
Pressure Range: Vacuum to 15 psi, 1.0 bar
Color: Grey
Mounting Option: Free Floating
Temperature Range: 32°F - 120°F (0°C - 49°C)
Seal Options: EPDM
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Spillage: <0.02 cc per disconnect, 0.01 cc per connect
Bag Qty: 25
Main Features:
- Non-spill design
- Ultra low air inclusion
- Intuitive interface
- Rotating design
- Chemically resistant materials
Main Benefits:
- Closed system for drip-free disconnect
- Minimizes contaminants, eliminates the need to purge air bubbles from the system
- User friendly ergonomic design enables a secure, reliable connection
- Allows tubing to move freely or relax without kinking or leaking
- Reliable strength and performance in a range of applications
COUPLING INSERTS - Polyproplyene
TERMINATION | IN-LINE HOSE BARB |
TUBING/THREAD SIZE | 1/8" ID |
METRIC EQ. | 3.2 MM ID |
SHUTOFF | NS1D220212 |
A(Height/Diameter) | 0.44 (11.2) |
B( Total Length) | 1.04 (26.4) |
*All measurements are in inches (millimetres) unless otherwise noted.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Click to download : CPC-NS1-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003126 |
| Manufacturer Code | NS1D220212 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
