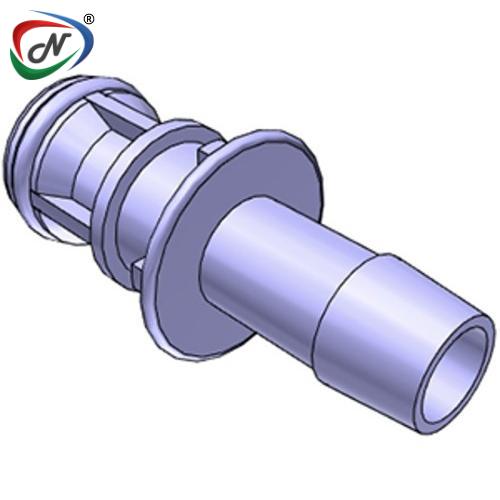

MPC22004T03M 1/4 HB Non-Valved Polycarbonate Coupling Insert
#NSSP004078
Product Description
MPC22004T03M 1/4 HB Non-Valved Polycarbonate Coupling Insert with Class VI
Silicone O-Ring
- MPC connectors enhance convenience and safety in your
essential fluid handling tasks.
- Select from a comprehensive range of male and female MPC
connectors and setups, which include pressure sealing caps and plugs, available
in sizes suitable for 1/8", 1/4", and 3/8" tubing.
- MPC couplings provide the option of locking sleeves for
added protection against unintended disconnections.
- Moreover, the coupling halves can be rotated while connected
to minimize tube kinks.
Main Specifications:
- Material: Polycarbonate, USP Class VI, ADCF
- Material Finish: Natural
- Pressure Range: Up to 60 psi, 4.1 bar.
- Color: Purple Tint
- Mounting Option: Free Floating
- Sterilization Method: Gamma, autoclave
- Temperature Range: -40°F - 250°F (-40°C -
121°C)
- Seal Options: Silicone, platinum cured, USP
Class VI, ADCF
- Valve Options: Non-Valved
- Body Type: Insert
|
Features |
Benefits |
||
|
Ergonomic thumb latch |
Easy to operate – even
with gloved hands |
||
|
USP Class VI materials |
Meet biocompatibility
requirements |
||
|
Sterilizable by autoclave,
Et0, e-beam or gamma |
Robust and economical for
single-use applications |
||
|
Parting line-free hose
barb |
Eliminates potential leak
path |
||
|
BSE/TSE free materials |
Meet ADCF requirements |
||
Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004078 |
| Manufacturer Code | MPC22004T03M |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
