FFC24835BSPT 1/2 BSPT Non-Valved Coupling Insert

#NCPC312

Product Description

FFC24835BSPT

1/2 BSPT Non-Valved Coupling Insert

Main Features:

  • No Valves
  • Polysulfone Material
  • Ergonomic Design

Main Benefits:

  • Exceptional Flow
  • Physically Strong & Autoclavable
  • Easy to Grip, Simple to Operate

Main Specifications:

  • Material: Polysulfone
  • Material Finish: Molded White
  • Color: White
  • Mounting Option: Thread
  • Temperature Range: -40°F - 280°F (-40°C - 138°C)
  • Seal Options: FDA BUNA-N
  • Valve Option: Non-Valved
  • Body Type: Insert
  • Bag Qty: 10

COUPLING INSERTS - Polypropylene

TERMINATION

IN-LINE PIPE THREAD

TUBING/

THREAD SIZE

1/2" BSPT

STRAIGHT THRU

FFC24835BSPT

A(Height/Diameter)

1.16 (28.4)

B (Total Length)

1.95 (47.8)




*All measurements are in inches (millimetres) unless otherwise noted. ?Tubing must meet stated inside and outside diameters

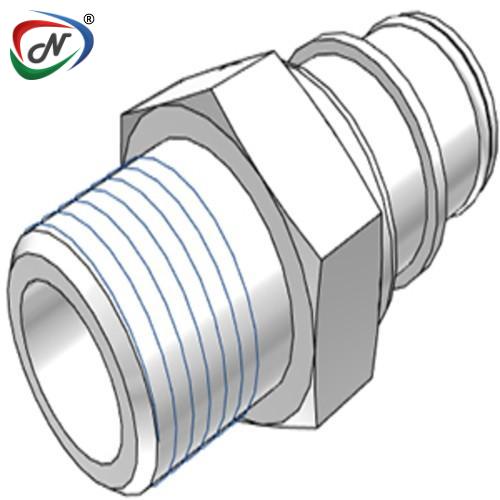

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC312
Manufacturer Code FFC24835BSPT
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
