FFC161235 3/4 Hose Barb Non-Valved Panel Mount Coupling Body

#NSSP005049

Product Description

FFC161235

3/4 Hose Barb Non-Valved Panel Mount Coupling Body

Main Features:

No Valves

Polysulfone Material

Ergonomic Design

Main Benefits:

Exceptional Flow

Physically Strong & Autoclavable

Easy to Grip, Simple to Operate

Main Specifications:

Material: Polysulfone

Material Finish: Molded White

Color: White

Mounting Option: Panel Mount

Temperature Range: -40°F - 280°F (-40°C - 138°C)

Seal Options: FDA BUNA-N

Valve Option: Non-Valved

Body Type: Body

Bag Qty: 10

COUPLING BODIES - Polypropylene

TERMINATION	BULKHEAD PANEL MOUNT HOSE BARB
TUBING/ THREAD SIZE	3/4" ID
METRIC EQ.	19.0mm ID
STRAIGHT THRU	FFC161235

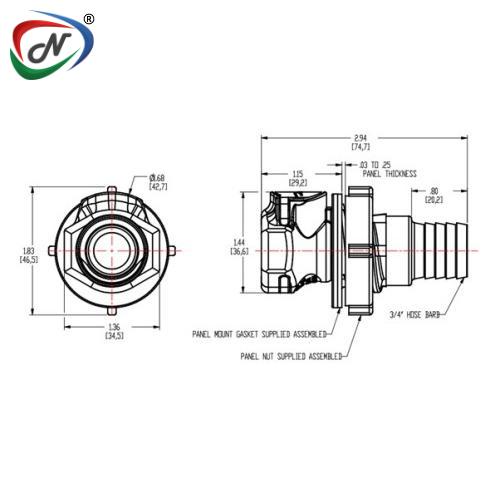

A(Height/Diameter)	1.44 (35.3)
B (Total Length)	2.94 (72.0)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
