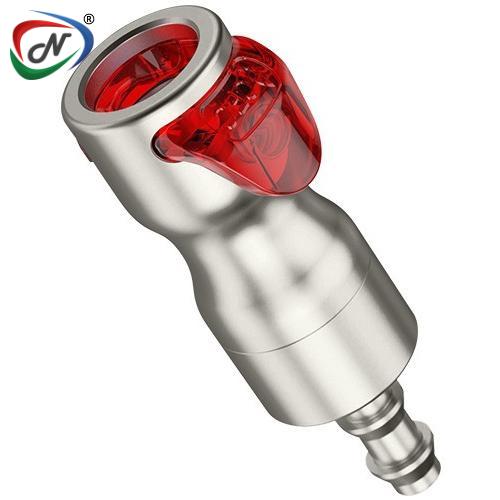

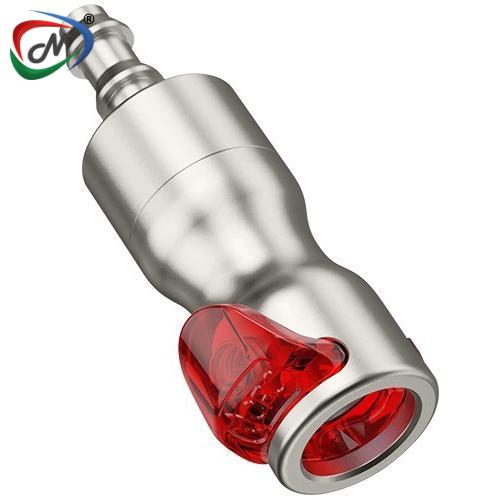

LQ4SD17004LRED Everis 1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red
#NSSP006424
Product Description
LQ4SD17004LRED Everis 1/4" Locking Hose Barb Valved In-Line Liquid Cooling Coupling Body, Warm Red
Main Features:
- Dry break, non-spill valves
- Redundant multi-lobed seals
- High flow capacity with low pressure drop
- EPDM seals
- Ergonomic body and latch design
- Color coding
- Low profile
- Barbed and threaded terminations
Main Benefits:
- Disconnect under pressure with no spills
- Extra protection from leak-causing contaminants and debris
- Efficient, cost effective cooling system
- Compatibility with common coolants and application temperatures
- Simple intuitive one handed operation and audible click signals secure connection
- Instant visual identification of cooling lines
- Meets size requirements for space-constrained electronics
- System design flexibility, including providing options
Main Specifications:
- Material: 303 Stainless Steel
- Material Finish: Passivated
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color : Metallic with Warm Red
- Mounting Option: In-Line
- Temperature Range : 0°F - 240°F ((-17°C) - 115°C)
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Shipping/Storage Temperature Range: -40°F to 167°F (-40°C to 75°C)
- Spillage: Spillage is < 0.025 cc per disconnect at 0 psi and < 0.055 cc per disconnect rated at 120 psi; Inclusion < 0.025 cc per connect
- Bag Qty: 10
Click to download : CPC-TRM-Everis-LQ4S-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006424 |
| Manufacturer Code | LQ4SD17004LRED |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
