PLQ4D17006BLU Everis 3/8

#ncpc451

Product Description

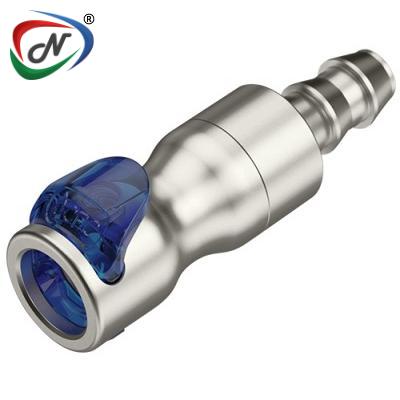

PLQ4D17006BLU Everis 3/8" Hose Barb Valved In-Line Liquid Cooling Coupling Body, Cool Blue

Main Features:

  • PPSU material provides high performance and durability
  • Valve with non-spill design
  • With a high flow-to-size ratio and a low pressure drop
  • When connected, an audible click provides connection assurance
  • Options for threaded and barbed terminations
  • Detailed product testing (tested to 10,000 cycles)
  • The ergonomic design of the body and latch provide simple, operations

Main Benefits:

  • Assurance of reliability and dimensional stability
  • Allows mounting or tubing connections to be made as desired
  • Ensures no leaks during connection or disconnection
  • UL94 VO flame retardant, lightweight and chemicallycompatible with liquid cooling fluids

Main Specifications:

  • Material: Polyphenylsulfone/PPSU
  • Material Finish: Black, Transparent
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: Black with Cool Blue
  • Mounting Option: In-line
  • Temperature Range: 0°F - 185°F ((-17°C) - 85°C)
  • Seal Options: EPDM
  • Valve Spring: Stainless Steel
  • Valve Option: Valved
  • Body Type: Body
  • Shipping/Storage Temperature Range: -40°C to 115°C
  • Torque: 12 lb-in
  • Spillage: Spillage is < 0.015 cc per disconnect at 0 psi and  < 0.063 cc per disconnect rated at 120 psi;  Inclusion < 0.063 cc per connect
  • Bag Qty: 10





Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code ncpc451
Manufacturer Code PLQ4D17006BLU
Manufacturer CPC Quick Connect & Disconnect Solutions
Type Quick Fittings
