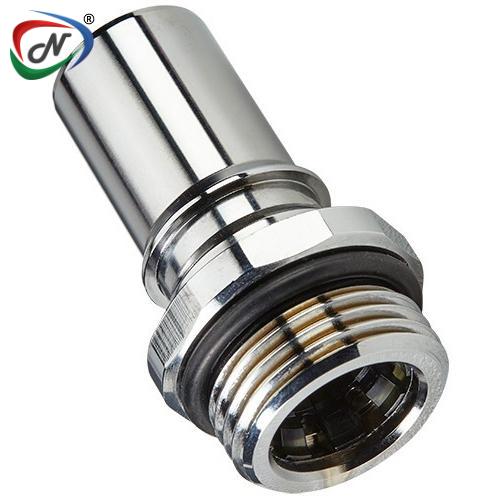

LQ8D46012 Everis SAE-12 Valved In-Line Insert
#NSSP006522
Product Description
LQ8D46012 Everis SAE-12 Valved In-Line Insert
Main Features:
- Non-Spill
Design
- Redundant
Multi-Lobed Seals
- High
Flow Capacity with Low Pressure Drop
- EPDM
Or FKM Seals
- Ergonomic
Body and Latch Design
- Low
Profile
- Barbed
& Threaded Terminations
Main Benefits:
- Disconnect
Under Pressure with no Spills
- Extra
Protection from Leaks over an Extended period of Time.
- Efficient,
Cost-Effective Cooling System
- Options
Support common coolants used in liquid cooling applications (i.e.,
Glycol/Water)
- Simple,
Intuitive One-Handed Operation of Latch. Audible Click Signals Secure
Connection
- Meets
size requirements for Space- Constrained Electronics
- Compatibility
with various tubing options including reinforced tubing.
Main Specifications:
- Material: Brass
- Material
Finish: Chrome
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Mounting
Option: In-Line
- Temperature
Range: 0°F - 240°F ((-17°C) - 115°C)
- Seal
Options: EPDM
- Valve
Spring: Stainless Steel
- Valve
Option: Valved
- Body
Type: Inserts
- Shipping/Storage
Temperature Range: -40°F to 240°F (-40°C to 115°C)
- Spillage: <0.033 cc per disconnect at 0 psi, <0.042 cc per disconnect at 30 psi
- Bag
Qty: 10
|
TERMINATION |
IN-LINE STRAIGHT THREAD SAE |
|
TUBING/THREAD
SIZE |
3/4
SAE-12: 1-1/16-121,3 |
|
HEX |
1 - 1/4" |
|
SHUTOFF |
LQ8D22010L |
|
A(Height/Diameter) |
1.30 (33.0) |
|
B
(Total Length) |
2.40
(61.0) |
|
C(Connected length) |
0.22 (5.6) |
*All measurements are in inches (millimetres) unless
otherwise noted.
Click to download : CPC-Everis-LQ8-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP006522 |
| Manufacturer Code | LQ8D46012 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
