LQ8D31012 Everis G 3/4 (BSPP) Valved In-Line Body

#NSSP006521

Product Description

LQ8D31012 Everis G 3/4 (BSPP) Valved In-Line Body

Main Features:

Non-Spill Design

Redundant Multi-Lobed Seals

High Flow Capacity with Low Pressure Drop

EPDM Or FKM Seals

Ergonomic Body and Latch Design

Low Profile

Barbed & Threaded Terminations

Main Benefits:

Disconnect Under Pressure with no Spills

Extra Protection from Leaks over an Extended period of Time.

Efficient, Cost-Effective Cooling System

Options Support common coolants used in liquid cooling applications (i.e., Glycol/Water)

Simple, Intuitive One-Handed Operation of Latch. Audible Click Signals Secure Connection

Meets size requirements for Space- Constrained Electronics

Compatibility with various tubing options including reinforced tubing.

Main Specifications:

Material: Brass

Material Finish: Chrome

Pressure Range: Vacuum to 120 psi, 8.3 bar

Mounting Option: In-Line

Temperature Range: 0°F - 240°F ((-17°C) - 115°C)

Seal Options: EPDM

Valve Spring: Stainless Steel

Valve Option: Valved

Body Type: Bodies

Shipping/Storage Temperature Range: -40°F to 240°F (-40°C to 115°C)

Spillage: <0.033 cc per disconnect at 0 psi, <0.042 cc per disconnect at 30 psi

Bag Qty: 10

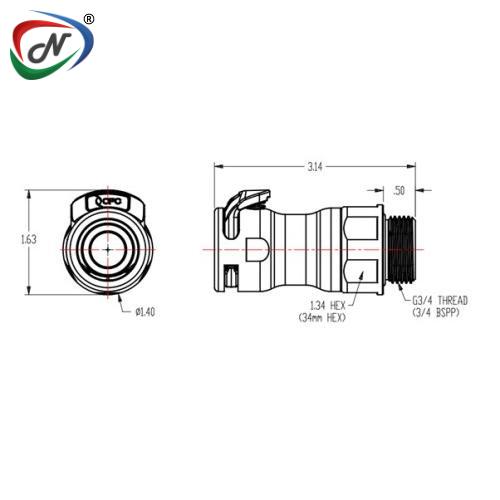

TERMINATION	IN-LINE STRAIGHT THREAD G / BSPP
TUBING/THREAD SIZE	G 3/4²
HEX	1 - 1/4"
SHUTOFF	LQ8D31012
A(Height/Diameter)	1.58 (40.1)
B (Total Length)	3.30 (83.8)
C(Connected length)	2.80 (71.1)

*All measurements are in inches (millimetres) unless otherwise noted.

Note: Image is just for ref.

WARNING: Pressure, temperature, chemicals, and operating environment can affect the performance of couplings. It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
