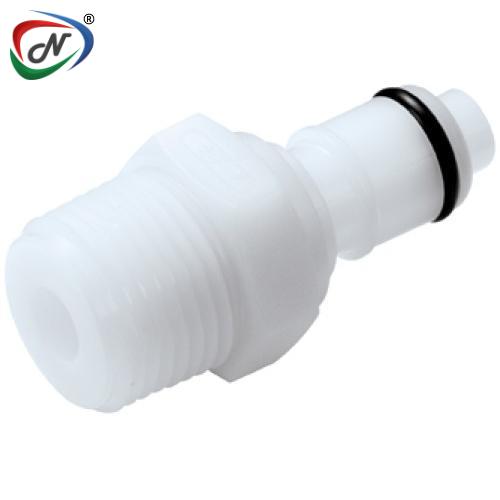

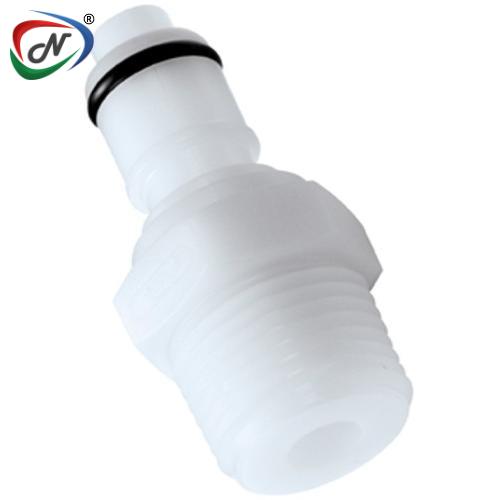

APCD24006- 3/8 NPT Valved Acetal (POM) Coupling INSERT

#NSSP003560

Product Description

APCD24006- 3/8 NPT Valved Acetal (POM) Coupling Insert

Main Features:

Plastic thumb latch
Shrouded thumb latch
Integral terminations
Compatible

Main Benefits:

No exposed metal parts
Protects against accidental disconnects
Fewer leak points, shorter assemblies, faster installations
Mates with most EFC couplings

Main Specifications:

Material: Acetal
Material Finish: Natural
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: White
Mounting Option: Thread
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 25

COUPLING INSERT - ACETAL

TERMINATION	IN-LINE PIPE THREAD
TUBING/THREAD SIZE	3/8" NPT
METRIC EQ
STRAIGHT THRU	APC24006
SHUTOFF	APCD24006
A (Height/Diameter)	0.72 (18.3)
B (Total Length)	1.50/1.64 (38.1/41.7)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
