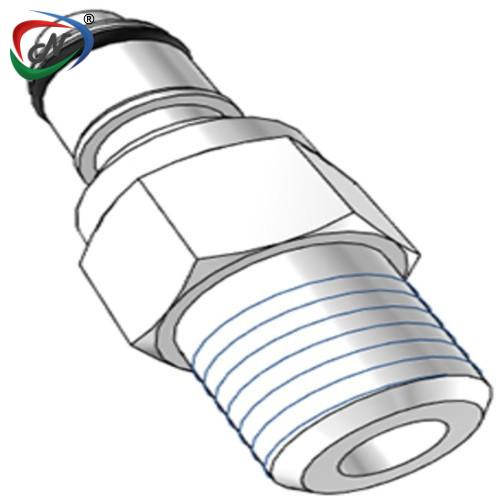

APCD24004V 1/4 NPT Valved Acetal (POM) Coupling Insert FKM Seal
#NSSP004663
Product Description
APCD24004V
1/4 NPT Valved Acetal (POM) Coupling Insert FKM
Seal
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental
disconnects
- Fewer leak points, shorter
assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options:
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC APC Series Spec SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004663 |
| Manufacturer Code | APCD24004V |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
