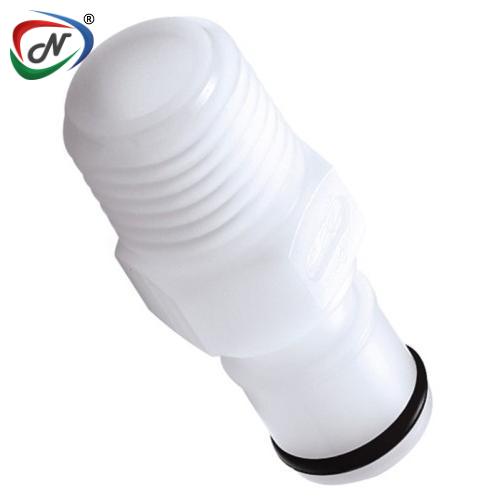

APCD24004BSPT 1/4 BSPT Valved Acetal (POM) Coupling Insert
#NSSP004659
Product Description
APCD24004BSPT
1/4 BSPT Valved Acetal (POM) Coupling Insert
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental
disconnects
- Fewer leak points, shorter
assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERT – Acetal
TERMINATION | IN-LINE PIPE THREAD |
TUBING SIZE | 1/4" BSPT |
METRIC EQ | |
STRAIGHT THRU | APC24004BSPT |
SHUTOFF | APCD24004BSPT |
A (Height/Diameter) | 0.72 (18.3) |
B (Total Length) | 1.63/1.77 (41.4/45.0) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC APC Series Spec SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004659 |
| Manufacturer Code | APCD24004BSPT |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
