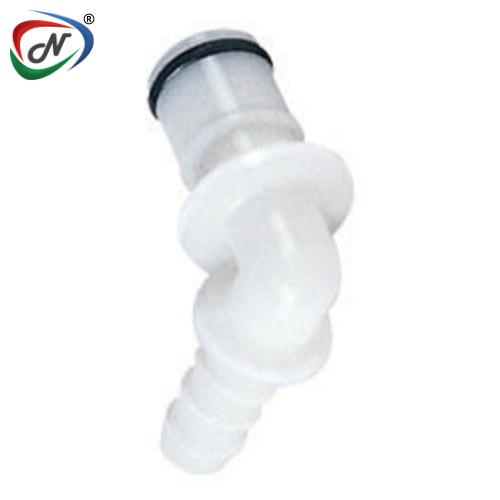

APCD23004 1/4 Hose Barb Valved Elbow Acetal (POM) Coupling Insert
#NSSP004650
Product Description
APCD23004
1/4 Hose Barb Valved Elbow Acetal (POM) Coupling Insert
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free Floating
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
COUPLING INSERT – Acetal
TERMINATION | ELBOW HOSE BARB |
TUBING SIZE | 1/4" ID |
METRIC EQ | 6.4 mm ID |
STRAIGHT THRU | APC23004 |
SHUTOFF | APCD23004 |
A (Height/Diameter) | 0.63 (16.0) |
B (Total Length) | 1.20/1.45 (30.5/36.8) |
D (Elbow Radial Length) | 0.96 (24.4) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC APC Series Spec SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004650 |
| Manufacturer Code | APCD23004 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
