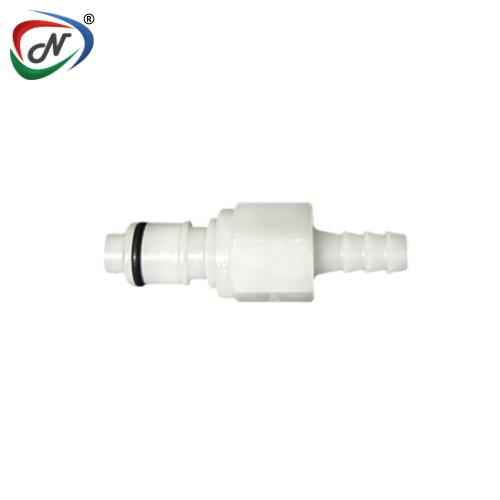

APCD22004 1/4 Hose Barb Valved In-Line Coupling insert
#NSSP004358
Product Description
APCD22004 1/4 Hose Barb Valved
In-Line Coupling insert
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Free floating
- Temperature Range: -40°F
- 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Insert
- Bag Qty: 25
Features – Benefits:
- Plastic thumb latch - No exposed metal parts
- Shrouded thumb latch - Protects against accidental disconnects
- Integral terminations - Fewer leak points, shorter assemblies, faster installations
- Compatibility - Mates with most EFC couplings
COUPLING INSERT – Acetal
TERMINATION | IN-LINE HOSE BARB |
TUBING SIZE | 1/4" ID |
METRIC EQ | 6.4mm ID |
STRAIGHT THRU | APC22004 |
SHUTOFF | APCD22004 |
A (Height/Diameter) | 0.60/0.72 (15.2/18.3) |
B (Total Length) | 1.40/2.10 (35.6/53.3) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : Catalogue APCD22004 1/4 Hose Barb Valved In-Line Coupling insert Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004358 |
| Manufacturer Code | APCD22004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
