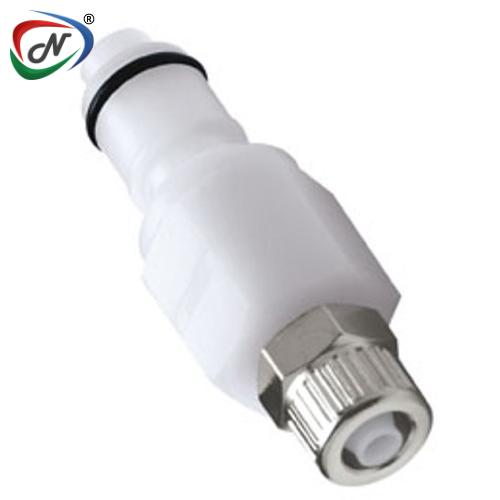

APCD20004 1/4 PTF VALVED IN-LINE ACETAL (POM) COUPLING INSERT

Main Features:

Plastic thumb latch
Shrouded thumb latch
Integral terminations
Compatible

Main Benefits:

No exposed metal parts
Protects against accidental disconnects
Fewer leak points, shorter assemblies, faster installations
Mates with most EFC couplings

Main Specifications:

Material: Acetal
Material Finish: Natural
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: White
Mounting Option: Free Floating
Temperature Range: -40°F - 180°F (-40°C - 82°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Valved
Body Type: Insert
Bag Qty: 25

COUPLING INSERT – ACETAL

TERMINATION	IN-LINE FERRULELESS POLYTUBE FITTING, PTF†
TUBING/THREAD SIZE	1/4" OD, 0.17" ID
METRIC EQ	6.4mm OD, 4.3mm ID
STRAIGHT THRU	APC20004
SHUTOFF	APCD20004
A (Height/Diameter)	0.72 (18.3)
B (Total Length)	1.86/1.99 (47.2/50.6)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

†NOTE: CPC's Ferruleless Polytube Fitting terminations do not require ferrules to achieve a secure connection, which makes them easier to use and reuse. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane, etc.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
