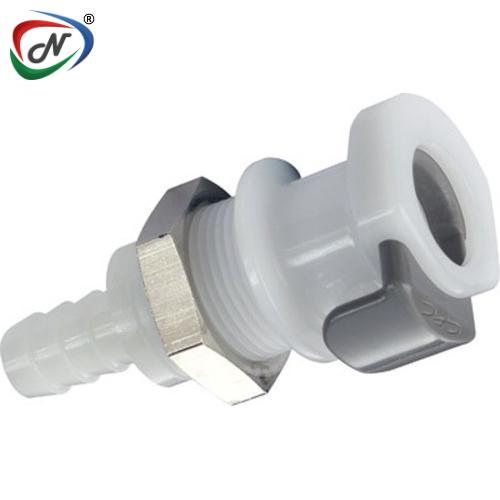

APCD16005 5/16 Hose Barb Valved Panel Mount Coupling Body

#NCPC249

Product Description

APCD16005

5/16 Hose Barb Valved Panel Mount Coupling Body

Main Features:

  • Plastic thumb latch
  • Shrouded thumb latch
  • Integral terminations
  • Compatible

Main Benefits:

  • No exposed metal parts
  • Protects against accidental disconnects
  • Fewer leak points, shorter assemblies, faster installations
  • Mates with most EFC couplings

Main Specifications:

  • Material: Acetal
  • Material Finish: Natural
  • Pressure Range: Vacuum to 120 psi, 8.3 bar
  • Color: White
  • Mounting Option: Panel Mount
  • Temperature Range: -40°F - 180°F (-40°C - 82°C)
  • Seal Options: BUNA-N
  • Valve Option: Non-Valved
  • Body Type: Body
  • Bag Qty: 25

COUPLING BODY- Acetal

TERMINATION

PANEL MOUNT

HOSE BARB

TUBING/THREAD SIZE

5/16" ID

METRIC EQ.

7.9mm ID

STRAIGHT THRU

APC16005

SHUTOFF

APCD16005

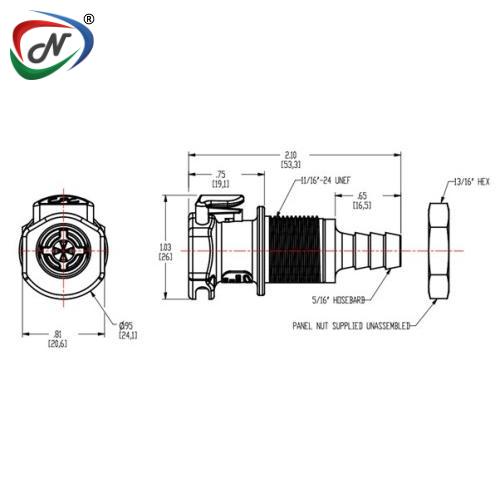

A(Height/Diameter)

1.03 (26.2)

B (Total Length)

2.1 (53.3)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.

 Note: Image is just for ref.

Read More

Medical (Core) & Thermal Industry

Additional Information

NESPL Code NCPC249
Manufacturer Code APCD16005
Manufacturer CPC Quick Connect & Disconnect Solutions
