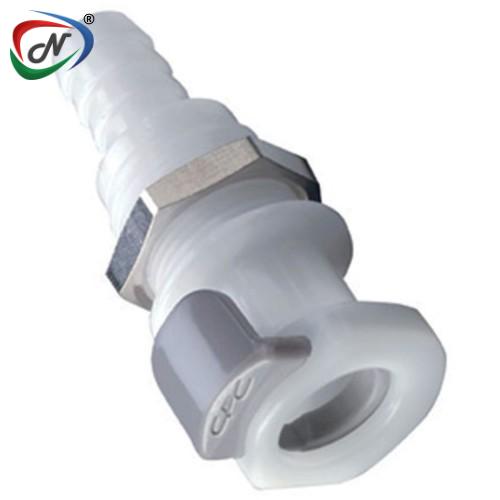

APCD16004EPR 1/4 Hose Barb Valved Panel Mount Acetal (POM) Coupling Body EPDM Seal
#NSSP004631
Product Description
APCD16004EPR 1/4 Hose Barb Valved Panel Mount Acetal (POM) Coupling Body EPDM Seal
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Panel Mount
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: EPDM
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY- Acetal
TERMINATION | PANEL MOUNT HOSE BARB |
TUBING/THREAD SIZE | 1/4" ID |
METRIC EQ. | 6.4 mm ID |
STRAIGHT THRU | APC16004 |
SHUTOFF | APCD16004 |
A(Height/Diameter) | 1.03 (26.2) |
B (Total Length) | 2.1 (53.3) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Click to download : CPC APC Series Spec SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004631 |
| Manufacturer Code | APCD16004EPR |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
