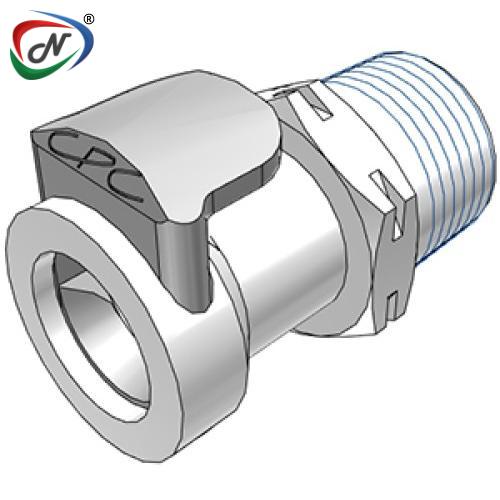

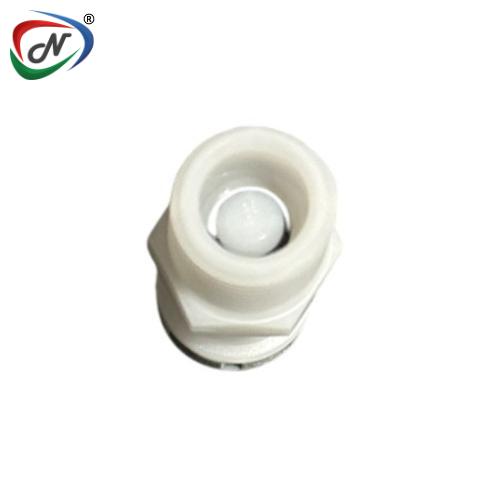

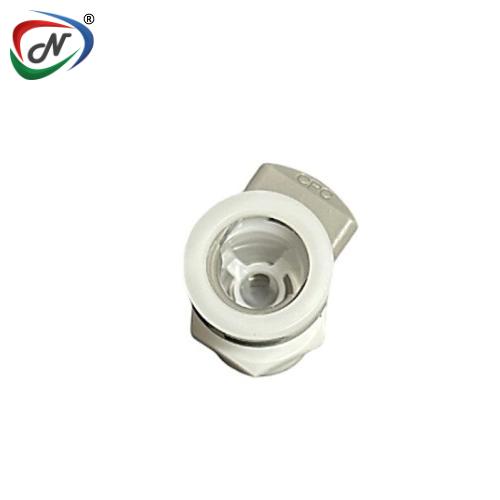

APCD10006BSPT -3/8 BSPT Valved Coupling Body
#NSSP003532
Product Description
APCD10006BSPT -3/8 BSPT Valved Coupling Body
Main
Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main
Benefits:
- No exposed metal parts.
- Protects against accidental disconnects.
- Fewer leak points, shorter assemblies, faster
installations
- Mates with most EFC couplings
Main
Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum
to 120 psi, 8.3 bar.
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Spring: 316 Stainless Steel
- Seal Option:
Buna-N
- Valve Option: Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY - ACETAL
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 3/8" BSPT |
STRAIGHT THRU | APC10006BSPT |
SHUTOFF | APCD10006BSPT |

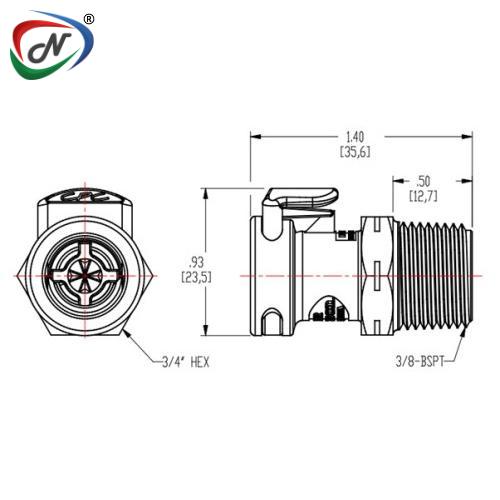

A (Height/Diameter) | 0.93 (23.6) |
B (Total Length) | 1.4 (25.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-APC-Spec-SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP003532 |
| Manufacturer Code | APCD10006 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.007kg |
| Type | Quick Fittings |
