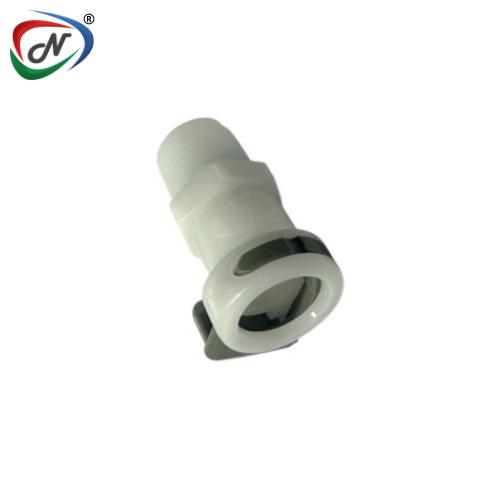

APCD10004 1/4 MNPT Valved Acetal (POM) Coupling Body
#NSSP004616
Product Description
APCD10004 1/4 MNPT Valved Acetal (POM) Coupling Body
The 1/4" flow APC Series couplings are designed with a plastic thumb latch, reduced moving components, and a streamlined shape to ensure user-friendliness and optimal flow within a compact framework. The patented APC Series has been enhanced to offer couplings equipped with valves and thumb latch covers. Certain models feature a more robust design, enhancing durability and broadening the APC's range of applications. Additionally, NSF-listed versions of APC couplings are available.
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum
to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Spring: 316 Stainless Steel
- Valve Options: Valved
- Body Type: Bodies
- Bag Qty: 25
Click to download : CPC-APC-Spec-Sheet Medical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004616 |
| Manufacturer Code | APCD10004 |
| HSN Code | 84818090 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
