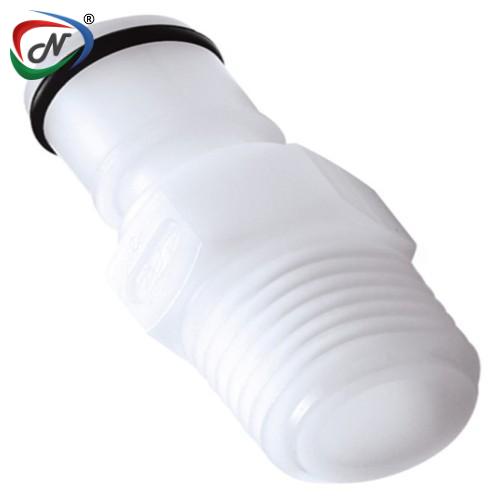

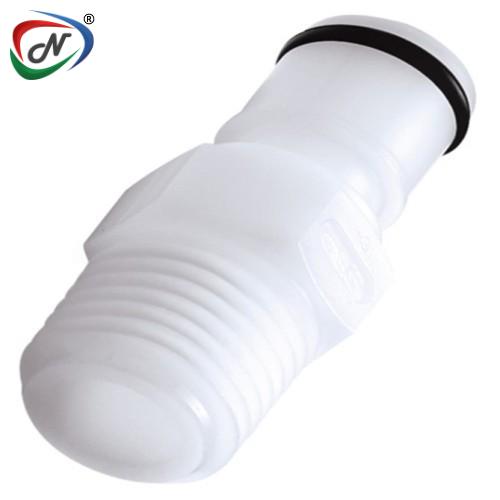

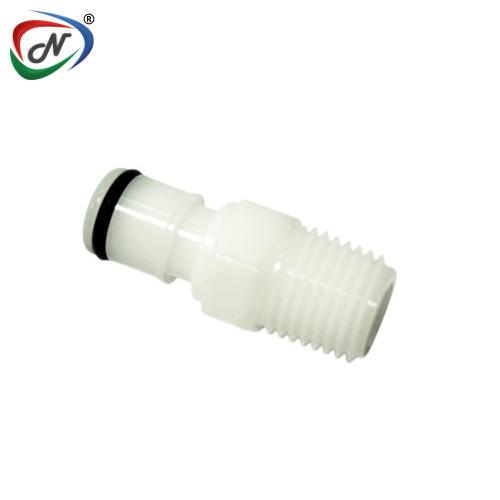

APC24004 -1/4 NPT Non-Valved Acetal (POM) Coupling Insert
#NSSP003308
Product Description
APC24004 -1/4 NPT Non-Valved Acetal (POM) Coupling Insert
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Seal Options: BUNA-N
- Valve Option: Non-Valved
- Body Type: Insert
- Bag Qty: 25
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
COUPLING INSERT - ACETAL
TERMINATION | IN-LINE PIPE THREAD |
TUBING/THREAD SIZE | 1/4" NPT |
STRAIGHT THRU | APC24004 |
SHUTOFF | APCD24004 |
A (Height/Diameter) | 0.72 (18.3) |
B (Total Length) | 1.43/1.77 (36.3/45.0) |
*All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.
WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.
Note: Image is just for ref.
Click to download : CPC-APC-Spec-SheetMedical (Core) & Thermal Industry
Various Industry Products
Additional Information
| NESPL Code | NSSP003308 |
| Manufacturer Code | APC24004 |
| HSN Code | 39174000 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Weight | 0.004kg |
| Type | Quick Fittings |
