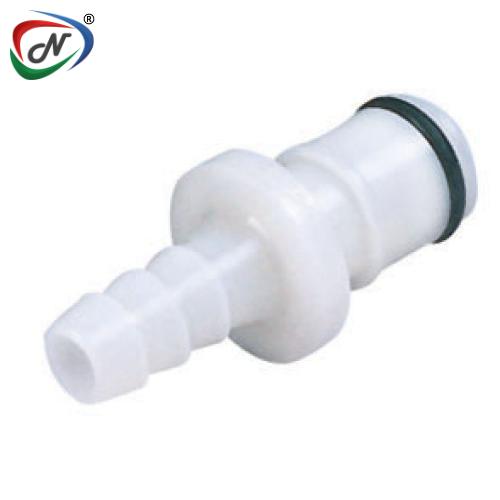

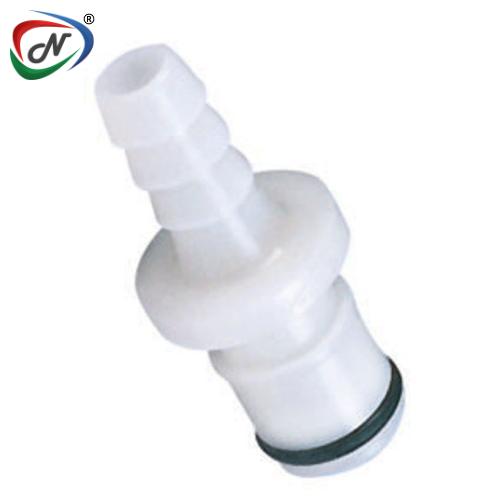

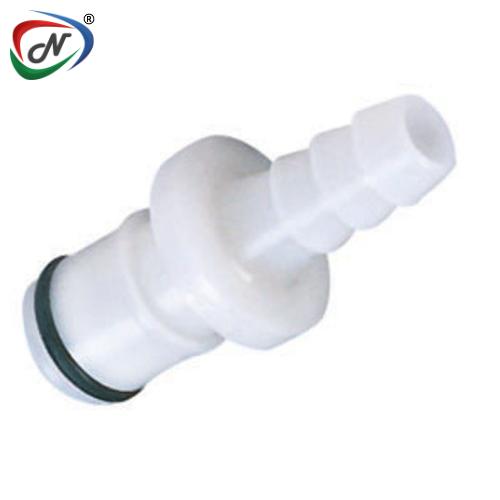

APC22004 -1/4 Hose Barb Non-Valved In-Line Acetal (POM) Coupling Insert

#NSSP003535

Product Description

APC22004 -1/4 Hose Barb Non-Valved In-Line Acetal (POM) Coupling Insert

Main Features:

Plastic thumb latch

Shrouded thumb latch

Integral terminations

Compatible

Main Benefits:

No exposed metal parts

Protects against accidental disconnects

Fewer leak points, shorter assemblies, faster installations

Mates with most EFC couplings

Main Specifications:

Material: Acetal

Material Finish: Natural

Pressure Range: Vacuum to 120 psi, 8.3 bar

Color: White

Mounting Option: Free Floating

Temperature Range: -40°F - 180°F (-40°C - 82°C)

Seal Option: Buna-N

Valve Option: Non-Valved

Body Type: Insert

Bag Qty: 25

COUPLING INSERT - ACETAL

TERMINATION	IN-LINE HOSE BARB
TUBING/THREAD SIZE	1/4" ID
METRIC EQ	6.4mm ID
STRAIGHT THRU	APC22004
SHUTOFF	APCD22004

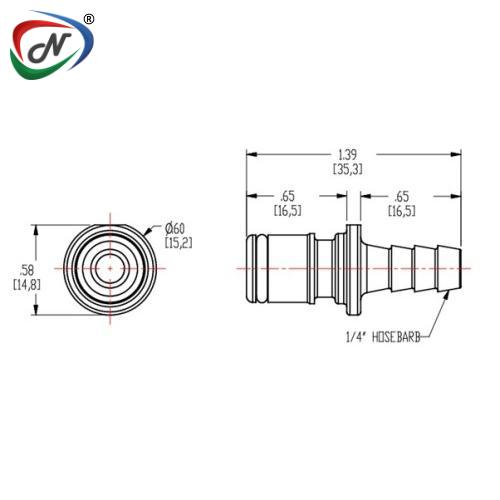

A (Height/Diameter)	0.60/0.72 (15.2/18.3)
B (Total Length)	1.40/2.10 (35.6/53.3)

*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters. Couplings are pictured with valves unless otherwise noted.

WARNING: It is the customer's responsibility to test the suitability of CPC products in their own application conditions.

Note: Image is just for ref.
