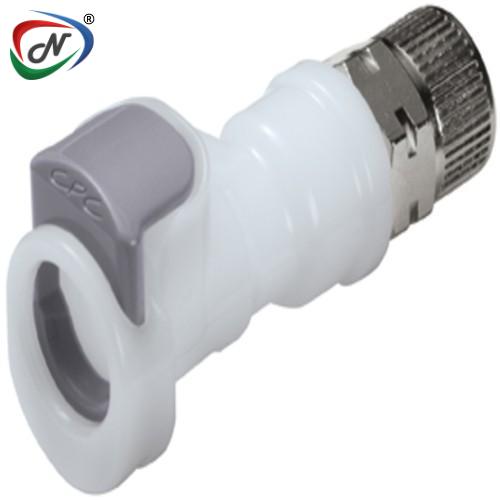

APC130M8SH 8mm PTF Coupling Body
#NSSP004579
Product Description
APC130M8SH
8mm PTF Coupling Body
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Acetal
- Material Finish: Natural
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting Option: Thread
- Temperature Range: -40°F - 180°F (-40°C - 82°C)
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 25
COUPLING BODY- Acetal
|
TERMINATION |
IN-LINE WITH
SHROUD FERRULELESS POLYTUBE FITTING, PTF |
|
METRIC EQ. |
8.0mm OD, 6.0mm ID |
|
STRAIGHT THRU |
APC130M8SH |
|
SHUTOFF |
APCD130M8SH |
|
A(Height/Diameter) |
1.3 (33.0) |
|
B (Total Length) |
2.07 (52.6) |
*All measurements are in inches (millimetres) unless otherwise noted. Tubing must meet stated inside and outside diameters.
Click to download : Dimensions/DesignMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004579 |
| Manufacturer Code | APC130M8SH |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
