APC13004SH 1/4 In-Line Coupling Body with Shroud
#NSSP004577
Product Description
APC13004SH
1/4 In-Line Coupling Body with Shroud
Main Features:
- Plastic
thumb latch
- Shrouded
thumb latch
- Integral
terminations
- Compatible
Main Benefits:
- No
exposed metal parts
- Protects
against accidental disconnects
- Fewer
leak points, shorter assemblies, faster installations
- Mates
with most EFC couplings
Main Specifications:
- Material: Acetal
- Material
Finish: Natural
- Pressure
Range: Vacuum to 120 psi, 8.3 bar
- Color: White
- Mounting
Option: Thread
- Temperature
Range: -40°F - 180°F (-40°C - 82°C)
- Valve
Option: Non-Valved
- Body
Type: Body
- Bag
Qty: 25
COUPLING BODY- Acetal
|
TERMINATION |
IN-LINE WITH
SHROUD FERRULELESS POLYTUBE FITTING, PTF |
|
TUBING/THREAD SIZE |
1/4" OD,
0.17" ID |
|
METRIC EQ. |
6.4mm OD,
4.3mm ID |
|
STRAIGHT THRU |
APC13004SH |
|
SHUTOFF |
APCD13004SH |
|
A(Height/Diameter) |
1.3 (33.0) |
|
B (Total Length) |
1.94 (49.3) |
*All measurements are in inches (millimetres) unless
otherwise noted. Tubing must meet stated inside and outside diameters.
Click to download : CPC APC Series Spec SheetMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004577 |
| Manufacturer Code | APC13004SH |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
Related Products
APC10004 1/4 NPT Non-Valved Coupling Body
NESPL Code - #NSSP003307
APC10004BSPT 1/4 BSPT Non-Valved Coupling Body
NESPL Code - #NSSP004569
APC10006 3/8 NPT Non-Valved Coupling Body
NESPL Code - #NSSP004572
APC10006BSPT 3/8 BSPT Non-Valved Coupling Body
NESPL Code - #NSSP004573
APC12004 1/4 PTF Non-Valved Panel Mount Coupling Body
NESPL Code - #NSSP004574
APC12006 3/8 PTF Non-Valved Panel Mount Coupling Body
NESPL Code - #NCPC225
APC120M10 10mm PTF Non-Valved Panel Mount Coupling Body
NESPL Code - #NCPC226

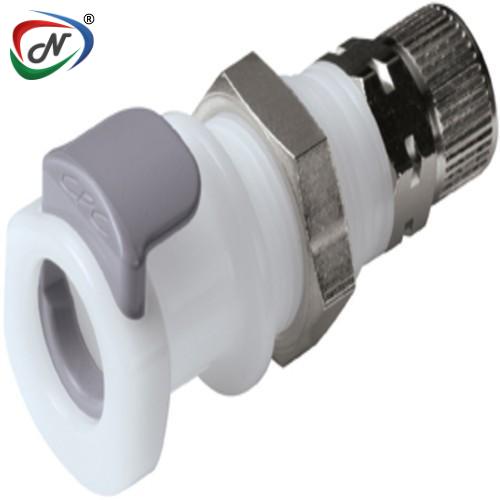

APC120M8 8mm PTF Non-Valved Panel Mount Coupling Body
