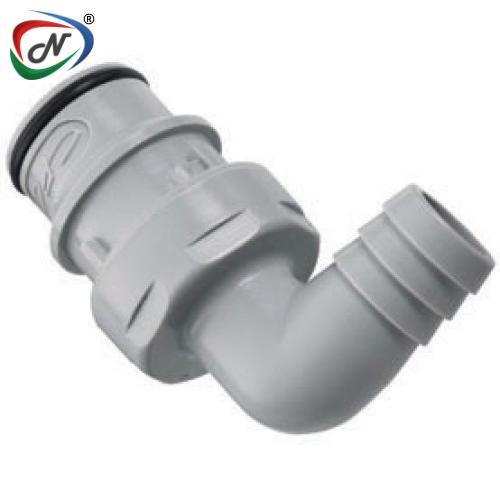

9366400 1/2 Hose Barb Valved Elbow Polypropylene Coupling Insert (HFCD23812 NSF)
#NSSP004518
Product Description
9366400 1/2 Hose Barb Valved Elbow Polypropylene Coupling Insert (HFCD23812 NSF)
The 1/4" flow APC Series couplings are designed with a plastic thumb latch, reduced moving components, and a streamlined shape to ensure user-friendliness and optimal flow within a compact framework. The patented APC Series has been enhanced to offer couplings equipped with valves and thumb latch covers. Certain models feature a more robust design, enhancing durability and broadening the APC's range of applications. Additionally, NSF-listed versions of APC couplings are available.
Main Features:
- Plastic thumb latch
- Shrouded thumb latch
- Integral terminations
- Compatible
Main Benefits:
- No exposed metal parts
- Protects against accidental disconnects
- Fewer leak points, shorter assemblies, faster installations
- Mates with most EFC couplings
Main Specifications:
- Material: Polypropylene
- Material Finish: Molded Grey
- Pressure Range: Vacuum to 60 psi, 4.2 bar
- Color: Gray
- Mounting Option: Free Floating
- Temperature Range: 32°F - 160°F (0°C - 71°C)
- Seal Options: EPDM
- Valve Spring: 316 Stainless Steel
- Valve Option: Non-Valved
- Body Type: Body
- Bag Qty: 10
Click to download : CPC-APC-Spec-Sheet.pdfMedical (Core) & Thermal Industry
Additional Information
| NESPL Code | NSSP004518 |
| Manufacturer Code | HFCD23812 |
| Manufacturer | CPC Quick Connect & Disconnect Solutions |
| Type | Quick Fittings |
