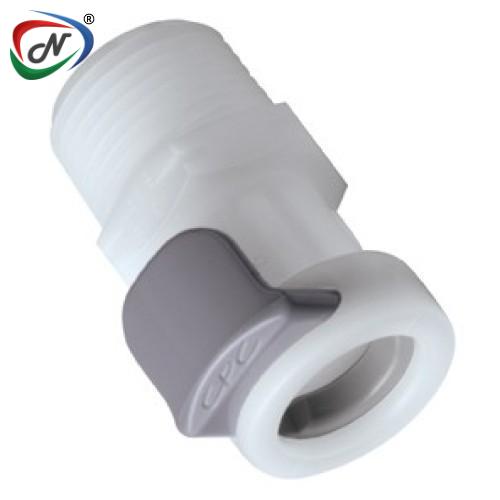

9203200 3/8 BSPT Non-Valved Acetal (POM) Coupling Body (APC10006BSPT NSF)

#NSSP004512

Product Description

9203200 3/8 BSPT Non-Valved Acetal (POM) Coupling Body (APC10006BSPT NSF)

The 1/4" flow APC Series couplings are designed with a plastic thumb latch, reduced moving components, and a streamlined shape to ensure user-friendliness and optimal flow within a compact framework. The patented APC Series has been enhanced to offer couplings equipped with valves and thumb latch covers. Certain models feature a more robust design, enhancing durability and broadening the APC's range of applications. Additionally, NSF-listed versions of APC couplings are available.

Main Features:

Material: Acetal
Material Finish: Natural
Pressure Range: Vacuum to 120 psi, 8.3 bar
Color: White
Mounting Option: Free Floating
Sterilization: Gamma: Up to 50 kGy irradiation
Temperature Range: 32°F - 160°F (0°C - 71°C)
Seal Options: BUNA-N
Valve Spring: 316 Stainless Steel
Valve Option: Non-Valved
Body Type: Bodies
Bag Qty: 25

Features		Benefits
	Plastic thumb latch		No exposed metal parts
	Shrouded thumb latch		Protects against accidental disconnects
	Integral terminations		Fewer leak points, shorter assemblies, faster installations
	Compatible		Mates with most EFC couplings
