Bio-Sil® 1480 Tubing

#SGN04

Product Description

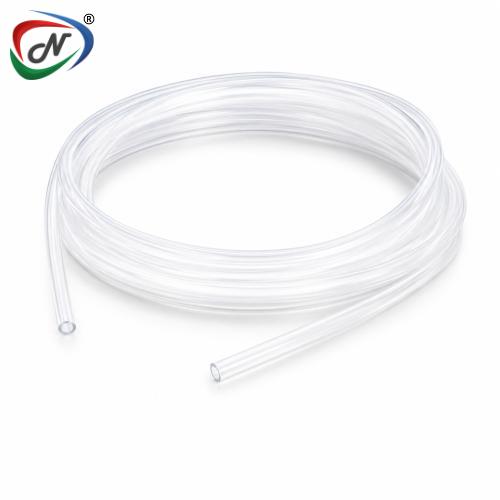

Bio-Sil® 1480 Tubing

Bio-Sil 1480 is a translucent tubing designed for use in medical devices and diagnostic equipment that necessitate high internal pressure or vacuum compatibility. The strong silicone wall structure of Bio-Sil® 1480 removes the requirement for reinforcement, rendering it suitable for applications such as reagent filling, suction systems, diagnostic manifolds, and balloon inflation lines. This tubing streamlines design processes while adhering to regulatory standards and durability requirements.

Main Features:

Substitutes braided tubing in medical systems where pressure is critical.
Preserves integrity in conditions of deep vacuum and suction.
Robust wall construction reduces expansion and pulsation.
The tubing complies with multiple ISO 10993 standards.
Suitable for EO, gamma, and steam sterilization processes.
Custom sizes can be provided.

Main Applications:

Pressure and vacuum lines in medical devices that necessitate high burst strength without additional reinforcement.
Fluid transport tubing in diagnostic instruments and laboratory analyzers, where transparency and silicone compatibility are essential.
Drainage and waste lines in systems subjected to varying pressure or aggressive cycling.
Tubing for pneumatic or mechanical actuation, including valve control or air-driven functions in closed-loop systems.
Compact device assemblies where flexible routing and resistance to kinking are required in limited spaces.

Main Specifications:

Property	ASTM Method	Value or Rating (metric)
Durometer Hardness, Shore A	D2240	83
Color		Translucent
Tensile Strength, psi (MPa)	D412	>700
Ultimate Elongation, 100%	D412	>300
Specific Gravity (g/cm2)	D792	1.19
