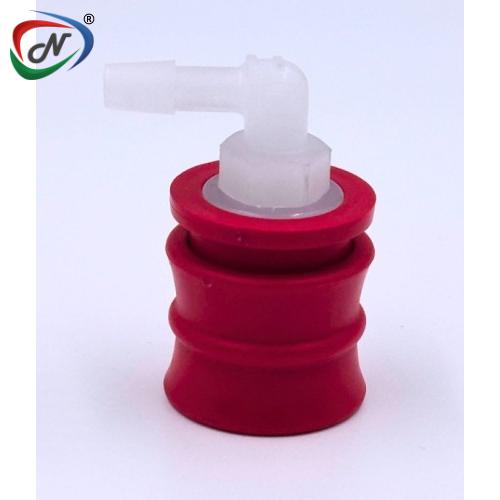

MPC-778-R High Temp Female Hansen Connector - Barbed -FITS 5/16, PVDF - Red
#NSSP007546
Product Description
MPC-778-R High Temp Female Hansen Connector - Barbed -FITS 5/16, PVDF - Red
- High-Temp Female Hansen Connectors—90° Angled Barb
- Connectors for connecting a dialysate port of a dialyzer to a dialysate-delivery line of a dialysis machine.
- Excellent chemical resistance.
- Easily engaged and disengaged from the dialyzer port.
- These high temp Hansen connectors are made for use with machines using heat sterilization, including Fresenius® and Aksys®.
- O-Ring Material: Viton
- Ball Material: Borosilicate Glass
- Available in Red, White, or Blue
- Packaged 10pcs. Per box / 80 pcs. Per case
Product Equivalence:
- MPC-773 - MPC-1010
- MPC-771 - MPC-1011
- MPC-772 - MPC-1013
- MPC-784 - MPC-1012
Part Number | Configuration | Size |
MPC-771 | Barbed | Fits 1/4" ID Tubing |
MPC-772 | Barbed | Fits 5/16" ID Tubing |
MPC-773 | Angled Barb | Fits 1/4" ID Tubing |
MPC-774 | Angled Barb | Fits 5/16" ID Tubing |
MPC-776 | Threaded | 3/8-18 NPT Male |
MPC-777 | Threaded | 1/4-18 NPT Male |
MPC-778 | 90° Angled Barb | Fits 5/16" ID Tubing |
MPC-779 | Threaded (Internal) | 1/2-14 NPT Female |
MPC-782 | 90° Angled Barb | Fits 1/4" ID Tubing |
MPC-784 | Barbed | Fits 1/8" ID Tubing |
Additional Information
| NESPL Code | NSSP007546 |
| Manufacturer Code | MPC-778-R |
| Manufacturer | MPC |
| Type | Fittings |
